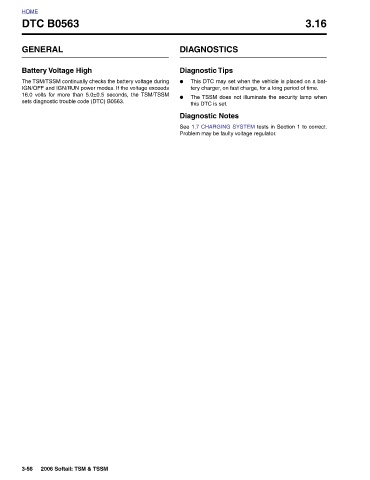

P. 131
3.16
DIAGNOSTICS Diagnostic Tips This DTC may set when the vehicle is placed on a bat- ● tery charger, on fast charge, for a long period of time. The TSSM does not illuminate the security lamp when ● this DTC is set. Diagnostic Notes See 1.7 CHARGING SYSTEM tests in Section 1 to correct. Problem may be faulty voltage regulator.
The TSM/TSSM continually checks the battery voltage during IGN/OFF and IGN/RUN power modes. If the voltage exceeds 16.0 volts for more than 5.0±0.5 seconds, the TSM/TSSM
DTC B0563 GENERAL Battery Voltage High sets diagnostic trouble code (DTC) B0563. 2006 Softail: TSM & TSSM
HOME 3-56
