NO Install TSM/TSSM properly. NO Was battery allowed to dis- charge? Was battery drawn down by starting problem? Recharge battery. NO Replace battery. NO No light or pump See 5.11 NO ECM POWER. At some point in the flow chart you may be instructed to jump directly to a the box with the bold asterisk. Disregard the asterisk (but not the instruction box) if your normal pro- gression through the chart brings you to this location.

Add fuel /connect spark plugs. Is TSM/TSSM mounted in proper orientation? YES Check battery connections and voltage. Is voltage above 12.60? YES Does battery pass conductance test or load test? YES Turn ignition key ON and engine stop switch to RUN. Did fuel pump run for 2 seconds and check engine lamp illumi- nate for 4 seconds? NO No pump, light OK. See 5.13 FUEL SYSTEM ELECTRICAL TEST. NO Go to bold asterisk in Test 5.10 (Part 4 of 4).

NO
2 Go to Test 5.10 (Part 2 of 4).

NO

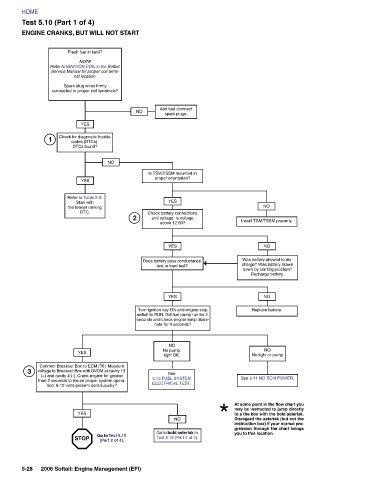

Test 5.10 (Part 1 of 4) ENGINE CRANKS, BUT WILL NOT START Fresh fuel in tank? NOTE Refer to IGNITION COIL in the Softail Service Manual for proper coil termi- nal location. Spark plug wires firmly connected to proper coil terminals? YES Check for diagnostic trouble 1 codes (DTCs). DTCs found? YES Refer to Table 5-5. Start with the lowest ranking DTC. YES Connect Breakout Box to ECM [78]. Measure voltage to Breakout Box with DVOM at cavity 13 (+) and cavity 4 (-). Crank engine for greater than 2 seconds to insure proper system opera- tion. 6-12 volts present continuously? YES STOP 2006

HOME 3 5-28
