Page 602 - 2006 HARLEY FLSTCI SERVICE MANUAL

1-17
9
10
12

11
Screw @ 12-16 ft-lbs (16.3-21.7 Nm)

8 7 2006 Softail: Maintenance

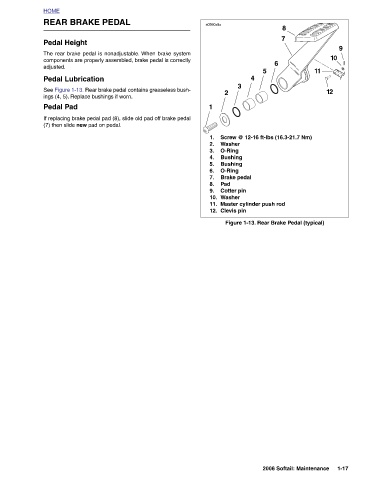

6 Figure 1-13. Rear Brake Pedal (typical)

5
4 Master cylinder push rod

3 Brake pedal Cotter pin Clevis pin

2 Washer O-Ring Bushing Bushing O-Ring Pad Washer
s0560x8x 1 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12.

REAR BRAKE PEDAL The rear brake pedal is nonadjustable. When brake system components are properly assembled, brake pedal is correctly Pedal Lubrication See Figure 1-13. Rear brake pedal contains greaseless bush- ings (4, 5). Replace bushings if worn. If replacing brake pedal pad (8), slide old pad off brake pedal (7) then slide new pad on pedal.

HOME Pedal Height adjusted. Pedal Pad
