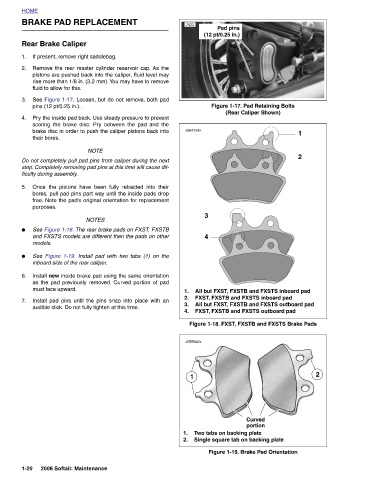

Figure 1-17. Pad Retaining Bolts (Rear Caliper Shown) All but FXST, FXSTB and FXSTS inboard pad FXST, FXSTB and FXSTS inboard pad All but FXST, FXSTB and FXSTS outboard pad FXST, FXSTB and FXSTS outboard pad Figure 1-18. FXST, FXSTB and FXSTS Brake Pads Curved portion Figure 1-19. Brake Pad Orientation

Pad pins (12 pt/0.25 in.) Two tabs on backing plate Single square tab on backing plate

7522 s0647x2x 3 4 1. 2. 3. 4. d0558a2x 1 1. 2.

BRAKE PAD REPLACEMENT

Rear Brake Caliper If present, remove right saddlebag. Remove the rear master cylinder reservoir cap. As the pistons are pushed back into the caliper, fluid level may rise more than 1/8 in. (3.2 mm). You may have to remove fluid to allow for this. See Figure 1-17. Loosen, but do not remove, both pad pins (12 pt/0.25 in.). Pry the inside pad back. Use steady pressure to prevent scoring the brake disc. Pry between the pad and the brake disc in order to push the caliper pistons back into their bores. NOTE Do not completely pull pad pins from caliper during the next step. Completely removing pad pins at this time will cause dif- ficulty during a
