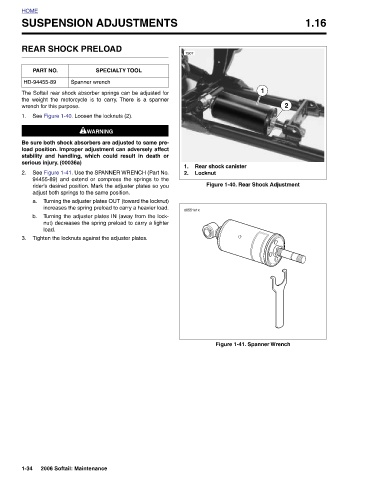

1 Figure 1-40. Rear Shock Adjustment Figure 1-41. Spanner Wrench

Rear shock canister

7507 1. Locknut 2. d0551x1x

SUSPENSION ADJUSTMENTS

REAR SHOCK PRELOAD SPECIALTY TOOL Spanner wrench The Softail rear shock absorber springs can be adjusted for the weight the motorcycle is to carry. There is a spanner wrench for this purpose. See Figure 1-40. Loosen the locknuts (2). 11WARNING 1WARNING Be sure both shock absorbers are adjusted to same pre- load position. Improper adjustment can adversely affect stability and handling, which could result in death or serious injury. (00036a) See Figure 1-41. Use the SPANNER WRENCH (Part No. 94455-89) and extend or compress the springs to the rider’s desired position. Mark the adjuster plates so you adjust both springs to the same position

HOME PART NO. HD-94455-89 1. 2. a. b. load. 3. 1-34
