2006 Softail: Maintenance
3
5

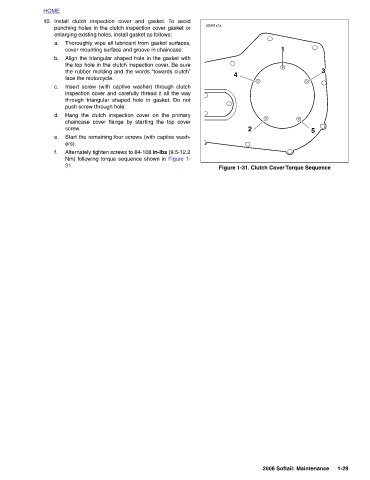

1 Figure 1-31. Clutch Cover Torque Sequence

2

4

d0341x1x

the top hole in the clutch inspection cover. Be sure
the rubber molding and the words “towards clutch”
punching holes in the clutch inspection cover gasket or
To avoid
Thoroughly wipe all lubricant from gasket surfaces,
Align the triangular shaped hole in the gasket with
cover mounting surface and groove in chaincase.
enlarging existing holes, install gasket as follows:
Install clutch inspection cover and gasket.

face the motorcycle. Insert screw (with captive washer) through clutch inspection cover and carefully thread it all the way through triangular shaped hole in gasket. Do not push screw through hole. Hang the clutch inspection cover on the primary chaincase cover flange by starting the top cover screw. Start the remaining four screws (with captive wash- ers). Alternately tighten screws to 84-108 in-lbs (9.5-12.2 Nm) following torque sequence shown in Figure 1-

HOME 10. a. b. c. d. e. f. 31.
