1.11                                                  2               1

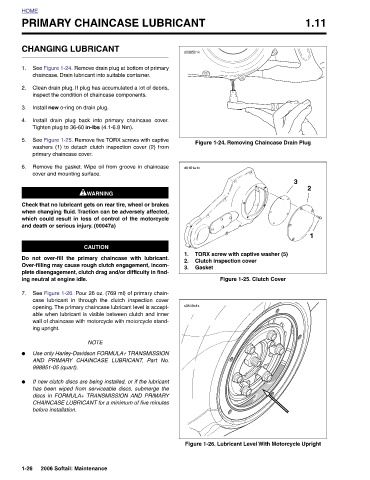

                                                      Figure 1-24. Removing Chaincase Drain Plug
                                                                   3
                                                                                          TORX screw with captive washer (5) Clutch inspection cover  Figure 1-25. Clutch Cover  Figure 1-26. Lubricant Level With Motorcycle Upright















               PRIMARY CHAINCASE LUBRICANT
                        d0385b1x                              d0161a1x                    1.  2.  Gasket  3.  s0549x1x















                       CHANGING LUBRICANT See Figure 1-24. Remove drain plug at bottom of primary chaincase. Drain lubricant into suitable container. Clean drain plug. If plug has accumulated a lot of debris, inspect the condition of chaincase components.   Install new o-ring on drain plug. Install drain plug back into primary chaincase cover. Tighten plug to 36-60 in-lbs (4.1-6.8 Nm). See Figure 1-25. Remove five TORX screws with captive washers (1) to detach clutch inspection cover (2) from primary chaincase cover. Remove the gasket. Wipe oil from groove in chaincase cover and mounting surface.  11WARNING 1WARNING Check that no lubricant gets on rear tire, wheel
