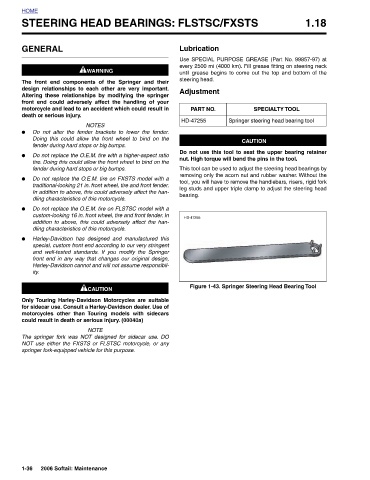

Page 621 - 2006 HARLEY FLSTCI SERVICE MANUAL

every 2500 mi (4000 km). Fill grease fitting on steering neck
until grease begins to come out the top and bottom of the
Use SPECIAL PURPOSE GREASE (Part No. 99857-97) at
1.18

SPECIALTY TOOL Springer steering head bearing tool CAUTION Do not use this tool to seat the upper bearing retainer This tool can be used to adjust the steering head bearings by removing only the acorn nut and rubber washer. Without the tool, you will have to remove the handlebars, risers, rigid fork leg studs and upper triple clamp to adjust the steering head Figure 1-43. Springer Steering Head Bearing Tool

STEERING HEAD BEARINGS: FLSTSC/FXSTS

Lubrication steering head. Adjustment PART NO. HD-47255 nut. High torque will bend the pins in the tool. bearing. HD-47255

11WARNING 1WARNING The front end components of the Springer and their design relationships to each other are very important. Altering these relationships by modifying the springer front end could adversely affect the handling of your motorcycle and lead to an accident which could result in NOTES Do not alter the fender brackets to lower the fender. Doing this could allow the front wheel to bind on the fender during hard stops or big bumps. Do not replace the O.E.M. tire with a higher-aspect ratio tire. Doing this could allow the front wheel to bind on the fender during hard stops or big bumps. Do not replace the O.E.M. tire on FXSTS

GENERAL death or serious injury.

HOME ● ● ● ● ● ity. 1-36
