1.20 1-41

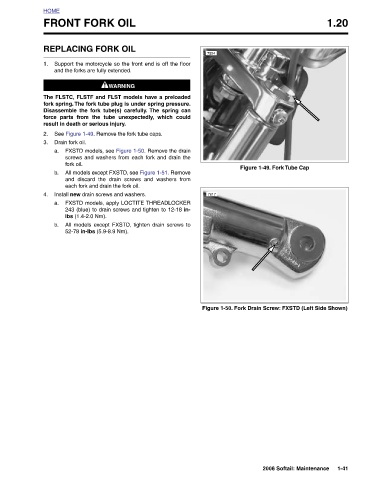

Figure 1-49. Fork Tube Cap Figure 1-50. Fork Drain Screw: FXSTD (Left Side Shown) 2006 Softail: Maintenance

7524 7617

FRONT FORK OIL REPLACING FORK OIL Support the motorcycle so the front end is off the floor and the forks are fully extended. 11WARNING 1WARNING The FLSTC, FLSTF and FLST models have a preloaded fork spring. The fork tube plug is under spring pressure. Disassemble the fork tube(s) carefully. The spring can force parts from the tube unexpectedly, which could result in death or serious injury. See Figure 1-49. Remove the fork tube caps. FXSTD models, see Figure 1-50. Remove the drain screws and washers from each fork and drain the fork oil. All models except FXSTD, see Figure 1-51. Remove and discard the drain screws and washers from each fork and d

HOME 1. 2. Drain fork oil. 3. a. b. 4. a. b.
