1.21 Verify that cables are 1-43

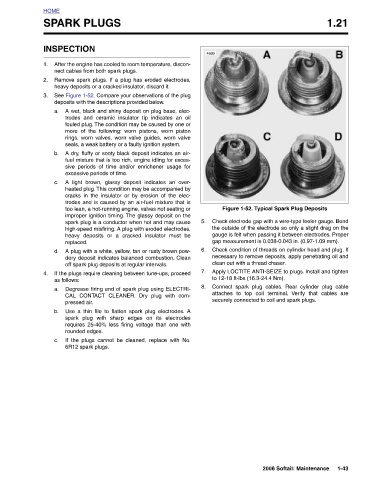

Figure 1-52. Typical Spark Plug Deposits Check electrode gap with a wire-type feeler gauge. Bend the outside of the electrode so only a slight drag on the gauge is felt when passing it between electrodes. Proper gap measurement is 0.038-0.043 in. (0.97-1.09 mm). Check condition of threads on cylinder head and plug. If necessary to remove deposits, apply penetrating oil and clean out with a thread chaser. Apply LOCTITE ANTI-SEIZE to plugs. Install and tighten to 12-18 ft-lbs (16.3-24.4 Nm). Connect spark plug cables. Rear cylinder plug cable attaches to top coil terminal. securely connected

4636
5. 6. 7. 8.

SPARK PLUGS INSPECTION After the engine has cooled to room temperature, discon- nect cables from both spark plugs. Remove spark plugs. If a plug has eroded electrodes, heavy deposits or a cracked insulator, discard it. See Figure 1-52. Compare your observations of the plug deposits with the descriptions provided below. A wet, black and shiny deposit on plug base, elec- trodes and ceramic insulator tip indicates an oil fouled plug. The condition may be caused by one or more of the following: worn pistons, worn piston rings, worn valves, worn valve guides, worn valve seals, a weak battery or a faulty ignition system. A dry, fluffy or sooty black depos
