1.24 d0419x1x 1-47

1 2006 Softail: Maintenance

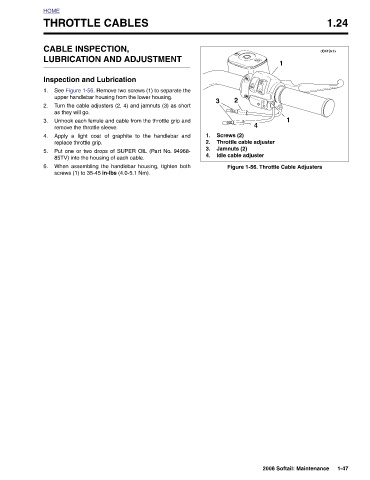

1 Figure 1-56. Throttle Cable Adjusters

4 Throttle cable adjuster

Screws (2) Jamnuts (2)
2 Idle cable adjuster

3
1. 2. 3. 4.

THROTTLE CABLES CABLE INSPECTION, LUBRICATION AND ADJUSTMENT Inspection and Lubrication See Figure 1-56. Remove two screws (1) to separate the upper handlebar housing from the lower housing. Turn the cable adjusters (2, 4) and jamnuts (3) as short Unhook each ferrule and cable from the throttle grip and remove the throttle sleeve. Apply a light coat of graphite to the handlebar and replace throttle grip. Put one or two drops of SUPER OIL (Part No. 94968- 85TV) into the housing of each cable. When assembling the handlebar housing, tighten both screws (1) to 35-45 in-lbs (4.0-5.1 Nm).

HOME 1. 2. as they will go. 3. 4. 5. 6.
