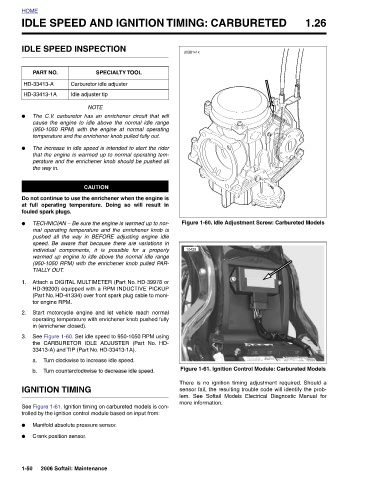

Page 635 - 2006 HARLEY FLSTCI SERVICE MANUAL

1.26 for Softail Models Electrical Diagnostic Manual

IDLE SPEED AND IGNITION TIMING: CARBURETED

d0381x1x Figure 1-60. Idle Adjustment Screw: Carbureted Models 10429 Figure 1-61. Ignition Control Module: Carbureted Models There is no ignition timing adjustment required. Should a sensor fail, the resulting trouble code will identify the prob- lem. See more information.

IDLE SPEED INSPECTION SPECIALTY TOOL Carburetor idle adjuster Idle adjuster tip NOTE The C.V. carburetor has an enrichener circuit that will cause the engine to idle above the normal idle range (950-1050 RPM) with the engine at normal operating temperature and the enrichener knob pulled fully out. The increase in idle speed is intended to alert the rider that the engine is warmed up to normal operating tem- perature and the enrichener knob should be pushed all CAUTION Do not continue to use the enrichener when the engine is at full operating temperature. Doing so will result in TECHNICIAN – Be sure the engine is warmed up to nor- mal op

HOME PART NO. HD-33413-A HD-33413-1A ● ● the way in. fouled spark plugs. ● TIALLY OUT. 1. 2. 3. a. b. ● ● 1-50
