1.28 1 1-53

2
3 2006 Softail: Maintenance

Front engine mounting nuts

2 Upper engine mounting to cylinder head bolts Upper engine to frame mounting bolt Figure 1-68. Engine Mounts

s0268a1x 1. 2. 3.

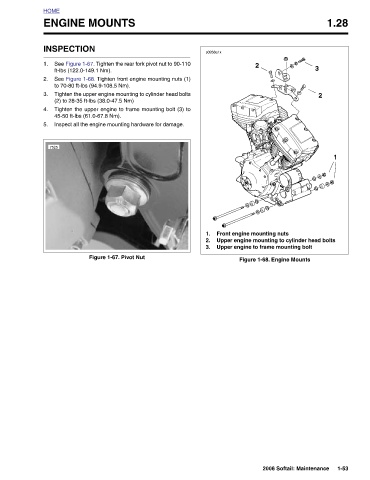

ENGINE MOUNTS See Figure 1-67. Tighten the rear fork pivot nut to 90-110 ft-lbs (122.0-149.1 Nm). See Figure 1-68. Tighten front engine mounting nuts (1) to 70-80 ft-lbs (94.9-108.5 Nm). Tighten the upper engine mounting to cylinder head bolts (2) to 28-35 ft-lbs (38.0-47.5 Nm) Tighten the upper engine to frame mounting bolt (3) to 45-50 ft-lbs (61.0-67.8 Nm). Inspect all the engine mounting hardware for damage. Figure 1-67. Pivot Nut

HOME INSPECTION 1. 2. 3. 4. 5. 7525
