2 2 2006 Softail: Maintenance

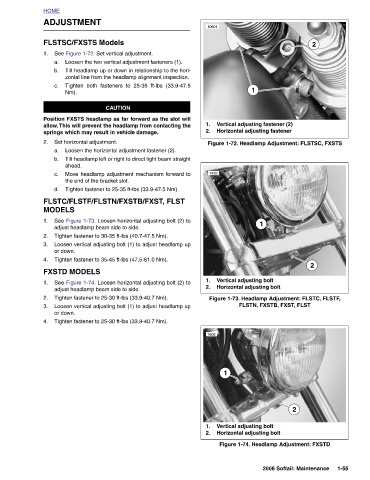

Vertical adjusting fastener (2) Horizontal adjusting fastener Figure 1-72. Headlamp Adjustment: FLSTSC, FXSTS 1 Figure 1-73. Headlamp Adjustment: FLSTC, FLSTF, FLSTN, FXSTB, FXST, FLST Figure 1-74. Headlamp Adjustment: FXSTD

1 Vertical adjusting bolt Horizontal adjusting bolt Vertical adjusting bolt Horizontal adjusting bolt

10601 1. 2. 7433 1. 2. 7608 1 1. 2.

ADJUSTMENT FLSTSC/FXSTS Models See Figure 1-72. Set vertical adjustment. Loosen the two vertical adjustment fasteners (1). Tilt headlamp up or down in relationship to the hori- zontal line from the headlamp alignment inspection. Tighten both fasteners to 25-35 ft-lbs (33.9-47.5 Nm). CAUTION Position FXSTS headlamp as far forward as the slot will allow. This will prevent the headlamp from contacting the springs which may result in vehicle damage. Set horizontal adjustment. Loosen the horizontal adjustment fastener (2). Tilt headlamp left or right to direct light beam straight ahead. Move headlamp adjustment mechanism forward to the end of the br
