1.30

4.0-5.1 Nm 6.8-9.0 Nm 6.8-9.0 Nm 23.0-29.8 Nm 38.0-51.5 Nm 21.7-32.5 Nm 40.7-47.5 Nm 0.7-0.9 Nm 54.2-67.8 Nm 67.8-74.6 Nm 81.3-88.1 Nm 81.3-88.1 Nm 40.7-47.5 Nm 47.5-54.2 Nm 31.2-38.0 Nm 16.3-20.3 Nm 40.7-54.2 Nm

TORQUE

35-45 in-lbs 60-80 in-lbs 60-80 in-lbs 17-22 ft-lbs 28-38 ft-lbs 16-24 ft-lbs 30-35 ft-lbs 6-8 in-lbs 40-50 ft-lbs 50-55 ft-lbs 60-65 ft-lbs 60-65 ft-lbs 30-35 ft-lbs 35-40 ft-lbs 23-28 ft-lbs 144-180 in-lbs 30-40 ft-lbs

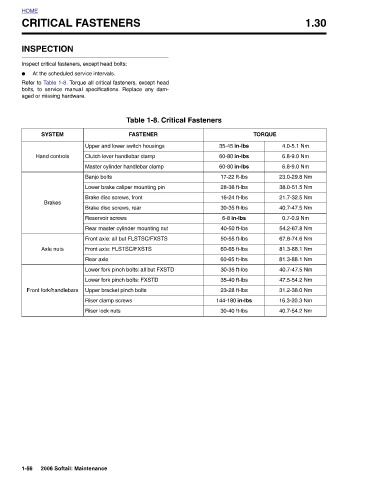

Table 1-8. Critical Fasteners FASTENER Upper and lower switch housings Master cylinder handlebar clamp Lower brake caliper mounting pin Rear master cylinder mounting nut Front axle: all but FLSTSC/FXSTS Lower fork pinch bolts: all but FXSTD

CRITICAL FASTENERS

Inspect critical fasteners, except head bolts: At the scheduled service intervals. Refer to Table 1-8. Torque all critical fasteners, except head bolts, to service manual specifications. Replace any dam- Clutch lever handlebar clamp Banjo bolts Brake disc screws, front Brake disc screws, rear Reservoir screws Front axle: FLSTSC/FXSTS Rear axle Lower fork pinch bolts: FXSTD Upper bracket pinch bolts Riser clamp screws Riser lock nuts 2006 Softail: Maintenance

INSPECTION aged or missing hardware. SYSTEM Hand controls Brakes Axle nuts Front fork/handlebars
