Page 623 - 2006 HARLEY FLSTCI SERVICE MANUAL

s0152x2x

3
2
1

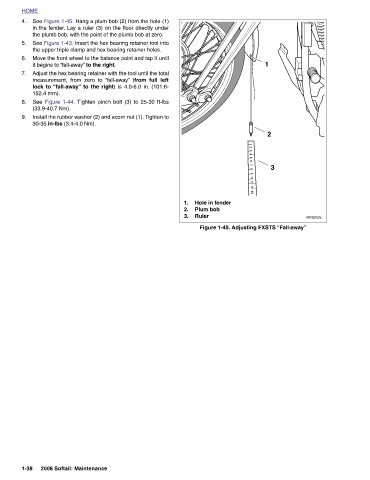

1 2 3 4 5 6 7 8 9 10 11 12 13 Figure 1-45. Adjusting FXSTS “Fall-away”

Hole in fender Plum bob Ruler

1. 2. 3.

in the fender. Lay a ruler (3) on the floor directly under
See Figure 1-45. Hang a plum bob (2) from the hole (1)
“fall-away” (from full left
Move the front wheel to the balance point and tap it until
See Figure 1-43. Insert the hex bearing retainer tool into
the plumb bob, with the point of the plumb bob at zero.
the upper triple clamp and hex bearing retainer holes.

it begins to “fall-away” to the right. Adjust the hex bearing retainer with the tool until the total measurement, from zero to lock to “fall-away” to the right) is 4.0-6.0 in. (101.6- See Figure 1-44. Tighten pinch bolt (3) to 25-30 ft-lbs (33.9-40.7 Nm). Install the rubber washer (2) and acorn nut (1). Tighten to 30-35 in-lbs (3.4-4.0 Nm). 2006 Softail: Maintenance

HOME 4. 5. 6. 7. 152.4 mm). 8. 9. 1-38
