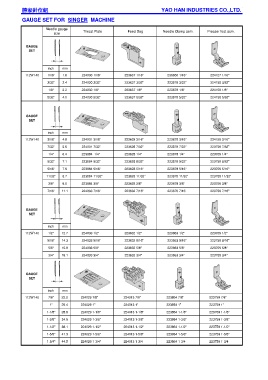

Page 536 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

GAUGE SET FOR SINGER MACHINE

Needle gauge Throat Plate Feed Dog Needle Clamp asm. Presser foot asm.
size

GAUGE
SET

勝家針位組 勝家針位組 勝家針位組 勝家針位組
inch mm
112W140 1/16" 1.6 224030 1/16" 223637 1/16" 236650 1/16" 224127 1/16"
3/32" 2.4 224030 3/32" 223637 3/32" 223878 3/32" 224158 3/32"
1/8" 3.2 224030 1/8" 223637 1/8" 223878 1/8" 224158 1/8"

5/32" 4.0 224030 5/32" 223637 5/32" 223878 5/32" 224158 5/32"

GAUGE
SET

inch mm
112W140 3/16" 4.8 224031 3/16" 223639 3/16" 223878 3/16" 224158 3/16"
7/32" 5.6 224031 7/32" 223639 7/32" 223878 7/32" 223759 7/32"
1/4" 6.4 223884 1/4" 223628 1/4" 223878 1/4" 223759 1/4"
9/32" 7.1 223884 9/32" 223628 9/32" 223878 9/32" 223759 9/32"
5/16" 7.9 223884 5/16" 223628 5/16" 223878 5/16" 223759 5/16"
11/32" 8.7 223884 11/32" 223628 11/32" 223878 11/32" 223759 11/32"
3/8" 9.5 223884 3/8" 223628 3/8" 223878 3/8" 223759 3/8"
7/16" 11.1 224033 7/16" 223632 7/16" 223878 7/16' 223759 7/16"

GAUGE
SET

inch mm
112W140 1/2" 12.7 224033 1/2" 223632 1/2" 223863 1/2" 223759 1/2"
9/16" 14.3 224033 9/16" 223632 9/16" 223863 9/16" 223759 9/16"
5/8" 15.9 224033 5/8" 223632 5/8" 223863 5/8" 223759 5/8"
3/4" 19.1 224033 3/4" 223632 3/4" 223863 3/4" 223759 3/4"

GAUGE
SET

inch mm
112W140 7/8" 22.2 224029 7/8" 224013 7/8" 223864 7/8" 223759 7/8"
1" 25.4 224029 1" 224013 1" 223864 1" 223759 1"
1-1/8" 28.6 224029 1-1/8" 224013 1-1/8" 223864 1-1/8" 223759 1-1/8"
1-3/8" 34.9 224029 1-3/8" 224013 1-3/8" 223864 1-3/8" 223759 1-3/8"
1-1/2" 38.1 224029 1-1/2" 224013 1-1/2" 223864 1-1/2" 223759 1-1/2"
1-5/8" 41.3 224029 1-5/8" 224013 1-5/8" 223864 1-5/8" 223759 1-5/8"
1-3/4" 44.5 224029 1-3/4" 224013 1-3/4 223864 1-3/4 223759 1-3/4
