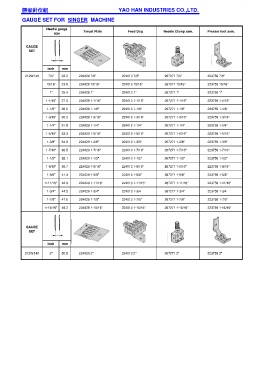

Page 539 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

GAUGE SET FOR SINGER MACHINE

Needle gauge
Throat Plate Feed Dog Needle Clamp asm. Presser foot asm.
size
GAUGE
SET

勝家針位組 勝家針位組 勝家針位組 勝家針位組
inch mm
212W140 7/8" 22.2 224029 7/8" 224013 7/8" 267271 7/8" 223759 7/8"
15/16" 23.8 224029 15/16" 224013 15/16" 267271 15/16" 223759 15/16"
1" 25.4 224029 1" 224013 1" 267271 1" 223759 1"

1-1/16" 27.0 224029 1-1/16" 224013 1-1/16" 267271 1-1/16" 223759 1-1/16"
1-1/8" 28.6 224029 1-1/8" 224013 1-1/8" 267271 1-1/8" 223759 1-1/8"
1-3/16" 30.2 224029 1-3/16" 224013 1-3/16" 267271 1-3/16" 223759 1-3/16"
1-1/4" 31.8 224029 1-1/4" 224013 1-1/4" 267271 1-1/4" 223759 1-1/4"

1-5/16" 33.3 224029 1-5/16" 224013 1-5/16" 267271 1-5/16" 223759 1-5/16"
1-3/8" 34.9 224029 1-3/8" 224013 1-3/8" 267271 1-3/8" 223759 1-3/8"
1-7/16" 36.5 224029 1-7/16" 224013 1-7/16" 267271 1-7/16" 223759 1-7/16"

1-1/2" 38.1 224029 1-1/2" 224013 1-1/2" 267271 1-1/2" 223759 1-1/2"
1-9/16" 39.7 224029 1-9/16" 224013 1-9/16" 267271 1-9/16" 223759 1-9/16"
1-5/8" 41.3 224029 1-5/8" 224013 1-5/8" 267271 1-5/8" 223759 1-5/8"
1-11/16" 42.9 224029 1-11/16" 224013 1-11/16" 267271 1-11/16" 223759 1-11/16"

1-3/4" 44.5 224029 1-3/4" 224013 1-3/4 267271 1-3/4" 223759 1-3/4
1-7/8" 47.6 224029 1-7/8" 224013 1-7/8" 267271 1-7/8" 223759 1-7/8"
1-15/16" 49.2 224029 1-15/16" 224013 1-15/16" 267271 1-15/16" 223759 1-15/16"

GAUGE
SET

inch mm

212W140 2" 50.8 224029 2" 224013 2" 267271 2" 223759 2"
