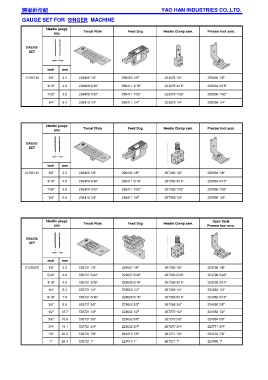

Page 542 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

GAUGE SET FOR SINGER MACHINE

Needle gauge
Throat Plate Feed Dog Needle Clamp asm. Presser foot asm.
size

GAUGE
SET

勝家針位組 勝家針位組 勝家針位組 勝家針位組
inch mm
112W145 1/8" 3.2 236405 1/8" 236403 1/8" 223878 1/8" 229094 1/8"

3/16" 4.8 236409 3/16" 236411 3/16" 223878 3/16" 229094 3/16"
7/32" 5.6 236409 7/32" 236411 7/32" 223878 7/32" 229096 7/32"
1/4" 6.4 236413 1/4" 236411 1/4" 223878 1/4" 229096 1/4"

Needle gauge
Throat Plate Feed Dog Needle Clamp asm. Presser foot asm.
size

GAUGE
SET

inch mm
212W145 1/8" 3.2 236405 1/8" 236403 1/8" 267269 1/8" 229094 1/8"
3/16" 4.8 236409 3/16" 236411 3/16" 267269 3/16" 229094 3/16"
7/32" 5.6 236409 7/32" 236411 7/32" 267269 7/32" 229096 7/32"
1/4" 6.4 236413 1/4" 236411 1/4" 267269 1/4" 229096 1/4"

Needle gauge Open Style
Throat Plate Feed Dog Needle Clamp asm.
size Presser foot asm.

GAUGE
SET

inch mm
212G400 1/8" 3.2 503721 1/8" 223637 1/8" 267269 1/8" 223799 1/8"
5/32" 4.0 503721 5/32" 223637 5/32" 267269 5/32" 223799 5/32"
3/16" 4.8 503721 3/16" 223639 3/16" 267269 3/16" 223799 3/16"
1/4" 6.4 503721 1/4" 223628 1/4" 267269 1/4" 224062 1/4"
5/16" 7.9 503721 5/16" 223628 5/16" 267269 5/16" 224062 5/16"
3/8" 9.5 503721 3/8" 223628 3/8" 267269 3/8" 224080 3/8"
1/2" 12.7 503721 1/2" 223632 1/2" 267270 1/2" 224082 1/2"
5/8" 15.9 503721 5/8" 223632 5/8" 267270 5/8" 224084 5/8"
3/4" 19.1 503721 3/4" 223632 3/4" 267270 3/4" 223771 3/4"
7/8" 22.2 503721 7/8" 224013 7/8" 267271 7/8" 224133 7/8"
1" 25.4 503721 1" 224013 1" 267271 1" 224068 1"
