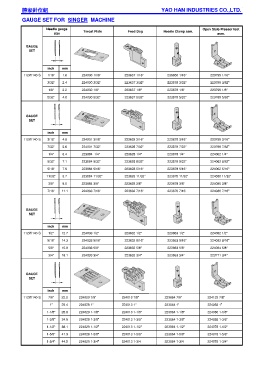

Page 537 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

GAUGE SET FOR SINGER MACHINE

Needle gauge Open Style Presser foot
Throat Plate Feed Dog Needle Clamp asm.
size asm.
GAUGE
SET

勝家針位組 勝家針位組 勝家針位組 勝家針位組
inch mm
112W140-S 1/16" 1.6 224030 1/16" 223637 1/16" 236650 1/16" 223799 1/16"
3/32" 2.4 224030 3/32" 223637 3/32" 223878 3/32" 223799 3/32"
1/8" 3.2 224030 1/8" 223637 1/8" 223878 1/8" 223799 1/8"

5/32" 4.0 224030 5/32" 223637 5/32" 223878 5/32" 223799 5/32"

GAUGE
SET

inch mm
112W140-S 3/16" 4.8 224031 3/16" 223639 3/16" 223878 3/16" 223799 3/16"
7/32" 5.6 224031 7/32" 223639 7/32" 223878 7/32" 223799 7/32"
1/4" 6.4 223884 1/4" 223628 1/4" 223878 1/4" 224062 1/4"
9/32" 7.1 223884 9/32" 223628 9/32" 223878 9/32" 224062 9/32"
5/16" 7.9 223884 5/16" 223628 5/16" 223878 5/16" 224062 5/16"
11/32" 8.7 223884 11/32" 223628 11/32" 223878 11/32" 224080 11/32"
3/8" 9.5 223884 3/8" 223628 3/8" 223878 3/8" 224080 3/8"
7/16" 11.1 224033 7/16" 223632 7/16" 223878 7/16' 224080 7/16"

GAUGE
SET

inch mm
112W140-S 1/2" 12.7 224033 1/2" 223632 1/2" 223863 1/2" 224082 1/2"
9/16" 14.3 224033 9/16" 223632 9/16" 223863 9/16" 224082 9/16"
5/8" 15.9 224033 5/8" 223632 5/8" 223863 5/8" 224084 5/8"
3/4" 19.1 224033 3/4" 223632 3/4" 223863 3/4" 223771 3/4"

GAUGE
SET

inch mm
112W140-S 7/8" 22.2 224029 7/8" 224013 7/8" 223864 7/8" 224133 7/8"
1" 25.4 224029 1" 224013 1" 223864 1" 224068 1"
1-1/8" 28.6 224029 1-1/8" 224013 1-1/8" 223864 1-1/8" 224086 1-1/8"
1-3/8" 34.9 224029 1-3/8" 224013 1-3/8" 223864 1-3/8" 224088 1-3/8"
1-1/2" 38.1 224029 1-1/2" 224013 1-1/2" 223864 1-1/2" 224078 1-1/2"
1-5/8" 41.3 224029 1-5/8" 224013 1-5/8" 223864 1-5/8" 224078 1-5/8"
1-3/4" 44.5 224029 1-3/4" 224013 1-3/4 223864 1-3/4 224078 1-3/4"
