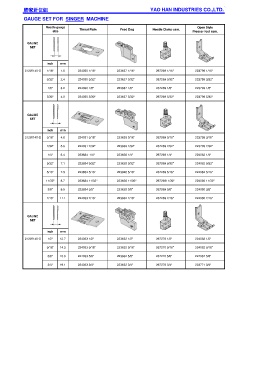

Page 540 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

GAUGE SET FOR SINGER MACHINE
Needle gauge Open Style
Throat Plate Feed Dog Needle Clamp asm.
size Presser foot asm.

GAUGE
SET

勝家針位組 勝家針位組 勝家針位組 勝家針位組
inch mm
212W140-S 1/16" 1.6 224030 1/16" 223637 1/16" 267269 1/16" 223799 1/16"

3/32" 2.4 224030 3/32" 223637 3/32" 267269 3/32" 223799 3/32"
1/8" 3.2 224030 1/8" 223637 1/8" 267269 1/8" 223799 1/8"
5/32" 4.0 224030 5/32" 223637 5/32" 267269 5/32" 223799 5/32"

GAUGE
SET

inch mm
212W140-S 3/16" 4.8 224031 3/16" 223639 3/16" 267269 3/16" 223799 3/16"
7/32" 5.6 224031 7/32" 223639 7/32" 267269 7/32" 223799 7/32"
1/4" 6.4 223884 1/4" 223628 1/4" 267269 1/4" 224062 1/4"

9/32" 7.1 223884 9/32" 223628 9/32" 267269 9/32" 224062 9/32"
5/16" 7.9 223884 5/16" 223628 5/16" 267269 5/16" 224062 5/16"

11/32" 8.7 223884 11/32" 223628 11/32" 26726911/32" 224080 11/32"
3/8" 9.5 223884 3/8" 223628 3/8" 267269 3/8" 224080 3/8"
7/16" 11.1 224033 7/16" 223632 7/16" 267269 7/16" 224080 7/16"

GAUGE
SET

inch mm
212W140-S 1/2" 12.7 224033 1/2" 223632 1/2" 267270 1/2" 224082 1/2"
9/16" 14.3 224033 9/16" 223632 9/16" 267270 9/16" 224082 9/16"

5/8" 15.9 224033 5/8" 223632 5/8" 267270 5/8" 224084 5/8"
3/4" 19.1 224033 3/4" 223632 3/4" 267270 3/4" 223771 3/4"
