Page 543 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

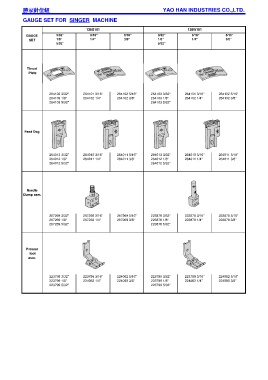

GAUGE SET FOR SINGER MACHINE

138G101 138W101
GAUGE 3/32" 3/16" 5/16" 3/32" 3/16" 5/16"
SET 1/8" 1/4" 3/8" 1/8" 1/4" 3/8"
5/32" 5/32"

勝家針位組 勝家針位組 勝家針位組 勝家針位組
Throat
Plate

264103 3/32" 264101 3/16" 264102 5/16" 264103 3/32" 264101 3/16" 264102 5/16"
264103 1/8" 264102 1/4" 264102 3/8" 264103 1/8" 264102 1/4" 264102 3/8"
264103 5/32" 264103 5/32"

Feed Dog

264013 3/32" 264010 3/16" 264011 5/16" 264013 3/32" 264010 3/16" 264011 5/16"
264012 1/8" 264011 1/4" 264011 3/8" 264012 1/8" 264011 1/4" 264011 3/8"
264012 5/32" 264012 5/32"

Needle
Clamp asm.

267269 3/32" 267269 3/16" 267269 5/16" 223878 3/32" 223878 3/16" 223878 5/16"
267269 1/8" 267269 1/4" 267269 3/8" 223878 1/8" 223878 1/4" 223878 3/8"
267269 5/32" 223878 5/32"

Presser
foot
asm.

223799 3/32" 223799 3/16" 224062 5/16" 223799 3/32" 223799 3/16" 224062 5/16"
223799 1/8" 224062 1/4" 224080 3/8" 223799 1/8" 224062 1/4" 224080 3/8"
223799 5/32" 223799 5/32"
