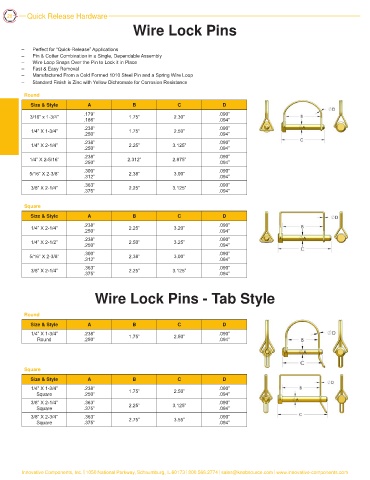

28 Quick Release Hardware
Wire Lock Pins

– Perfect for “Quick-Release” Applications
– Pin & Cotter Combination in a Single, Dependable Assembly
– Wire Loop Snaps Over the Pin to Lock it in Place
– Fast & Easy Removal
– Manufactured From a Cold Formed 1010 Steel Pin and a Spring Wire Loop
– Standard Finish is Zinc with Yellow Dichromate for Corrosion Resistance

Round
Size & Style A B C D
3/16” x 1-3/4” .179” 1.75” 2.30” .090”
.186” .094”
.238” .090”
1/4” X 1-3/4” 1.75” 2.50”
.250” .094”
.238” .090”
1/4” X 2-1/4” .250” 2.25” 3.125” .094”
.238” .090”
1/4” X 2-5/16” 2.312” 2.875”
.250” .094”
.300” .090”
5/16” X 2-3/8” 2.38” 3.00”
.312” .094”
.363” .090”
3/8” X 2-1/4” 2.25” 3.125”
.375” .094”
Square
Size & Style A B C D
.238” .090”
1/4” X 2-1/4” 2.25” 3.20”
.250” .094”
.238” .090”
1/4” X 2-1/2” 2.50” 3.25”
.250” .094”
.300” .090”
5/16” X 2-3/8” 2.38” 3.00”
.312” .094”
.363” .090”
3/8” X 2-1/4” 2.25” 3.125”
.375” .094”

Wire Lock Pins - Tab Style

Round
Size & Style A B C D
1/4” X 1-3/4” .238” 1.75” 2.50” .090”
Round .250” .094”

Square
Size & Style A B C D
1/4” X 1-3/4” .238” 1.75” 2.50” .090”
Square .250” .094”
3/8” X 2-1/4” .363” 2.25” 3.125” .090”
Square .375” .094”
3/8” X 2-3/4” .363” 2.75” 3.55” .090”
Square .375” .094”
