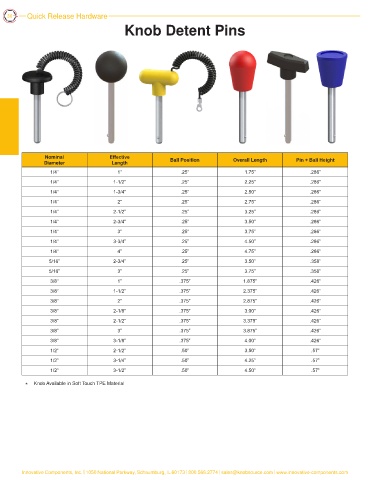

30 Quick Release Hardware
Knob Detent Pins

Nominal Effective
Diameter Length Ball Position Overall Length Pin + Ball Height
1/4” 1” .25” 1.75” .286”
1/4” 1-1/2” .25” 2.25” .286”
1/4” 1-3/4” .25” 2.50” .286”
1/4” 2” .25” 2.75” .286”
1/4” 2-1/2” .25” 3.25” .286”
1/4” 2-3/4” .25” 3.50” .286”
1/4” 3” .25” 3.75” .286”
1/4” 3-3/4” .25” 4.50” .286”
1/4” 4” .25” 4.75” .286”
5/16” 2-3/4” .25” 3.50” .358”
5/16” 3” .25” 3.75” .358”
3/8” 1” .375” 1.875” .426”
3/8” 1-1/2” .375” 2.375” .426”
3/8” 2” .375” 2.875” .426”
3/8” 2-1/8” .375” 3.00” .426”

3/8” 2-1/2” .375” 3.375” .426”
3/8” 3” .375” 3.875” .426”
3/8” 3-1/8” .375” 4.00” .426”
1/2” 2-1/2” .50” 3.50” .57”
1/2” 3-1/4” .50” 4.25” .57”
1/2” 3-1/2” .50” 4.50” .57”
* Knob Available in Soft Touch TPE Material
