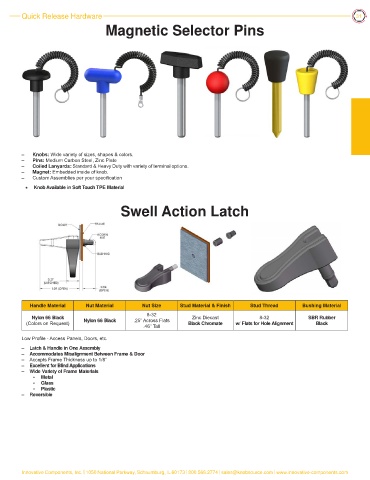

Quick Release Hardware 31
Magnetic Selector Pins

– Knobs: Wide variety of sizes, shapes & colors.
– Pins: Medium Carbon Steel, Zinc Plate
– Coiled Lanyards: Standard & Heavy Duty with variety of terminal options.
– Magnet: Embedded inside of knob.
– Custom Assemblies per your specification
* Knob Available in Soft Touch TPE Material

Swell Action Latch

Handle Material Nut Material Nut Size Stud Material & Finish Stud Thread Bushing Material

Nylon 66 Black 8-32 Zinc Diecast 8-32 SBR Rubber
(Colors on Request) Nylon 66 Black .25” Across Flats Black Chromate w/ Flats for Hole Alignment Black
.46” Tall
Low Profile - Access Panels, Doors, etc.
– Latch & Handle in One Assembly
– Accommodates Misalignment Between Frame & Door
– Accepts Frame Thickness up to 1/8”
– Excellent for Blind Applications
– Wide Variety of Frame Materials
• Metal
• Glass
• Plastic
– Reversible
