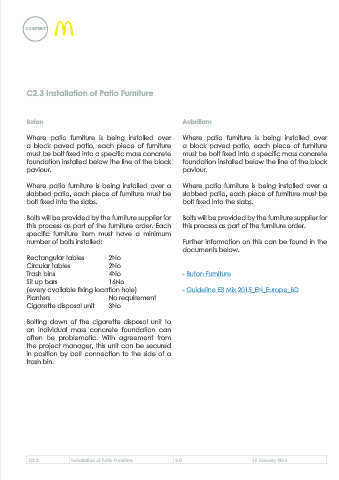

Page 279 - B6118-AEW-XX-XX-PP-A-0001_(P16)_Contractors Manual

CONSTRUCT

C2.3 Installation of Patio Furniture

Buton Aubrillam

Where patio furniture is being installed over Where patio furniture is being installed over
a block paved patio, each piece of furniture a block paved patio, each piece of furniture
must be bolt fixed into a specific mass concrete must be bolt fixed into a specific mass concrete
foundation installed below the line of the block foundation installed below the line of the block
paviour. paviour.

Where patio furniture is being installed over a Where patio furniture is being installed over a
slabbed patio, each piece of furniture must be slabbed patio, each piece of furniture must be
bolt fixed into the slabs. bolt fixed into the slabs.

Bolts will be provided by the furniture supplier for Bolts will be provided by the furniture supplier for
this process as part of the furniture order. Each this process as part of the furniture order.
specific furniture item must have a minimum
number of bolts installed: Further information on this can be found in the
documents below.
Rectangular tables 2No
Circular tables 2No
Trash bins 4No - Buton Furniture
Sit up bars 16No
(every available fixing location hole) - Guideline E3 Mix 2015_EN_Europe_BD
Planters No requirement
Cigarette disposal unit 3No

Bolting down of the cigarette disposal unit to
an individual mass concrete foundation can
often be problematic. With agreement from
the project manager, this unit can be secured
in position by bolt connection to the side of a
trash bin.

C2.3 Installation of Patio Furniture 2.0 15 January 2016
