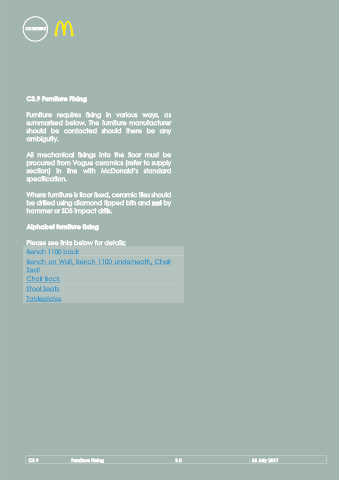

C3.9 Furniture Fixing

Furniture requires fixing in various ways, as
summarised below. The furniture manufacturer
should be contacted should there be any
ambiguity.

All mechanical fixings into the floor must be
procured from Vogue ceramics (refer to supply
section) in line with McDonald’s standard
specification.

Where furniture is floor fixed, ceramic tiles should
be drilled using diamond tipped bits and not by
hammer or SDS impact drills.

Alphabet furniture fixing

Please see links below for details;
Bench 1100 back
Bench on Wall, Bench 1100 underneath, Chair
Seat
Chair Back
Stool Seats
Tableplates
