CONSTRUCT

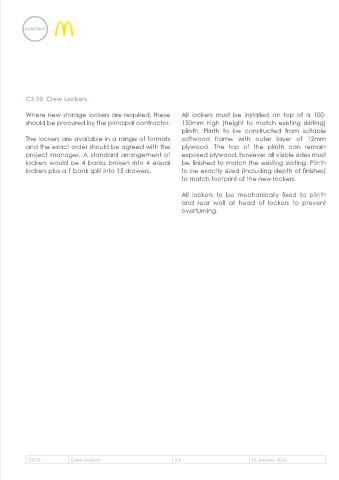

C3.10 Crew Lockers
Where new storage lockers are required, these All lockers must be installed on top of a 100-
should be procured by the principal contractor. 150mm high (height to match existing skirting)
plinth. Plinth to be constructed from suitable
The lockers are available in a range of formats softwood frame with outer layer of 12mm
and the exact order should be agreed with the plywood. The top of the plinth can remain
project manager. A standard arrangement of exposed plywood, however all visible sides must
lockers would be 4 banks broken into 4 equal be finished to match the existing skirting. Plinth
lockers plus a 1 bank split into 15 drawers. to be exactly sized (including depth of finishes)
to match footprint of the new lockers.
All lockers to be mechanically fixed to plinth
and rear wall at head of lockers to prevent
overturning.
C3.10 Crew Lockers 2.0 15 January 2016
