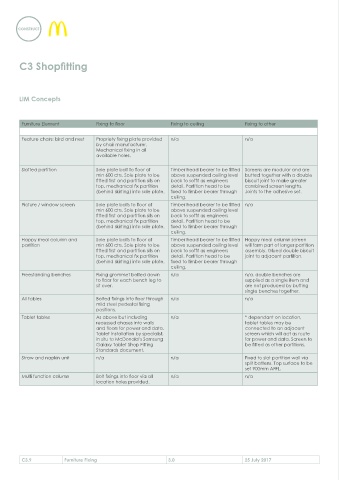

Page 364 - B6118-AEW-XX-XX-PP-A-0001_(P16)_Contractors Manual

CONSTRUCT

C3 Shopfitting

LIM Concepts

Furniture Element Fixing to floor Fixing to ceiling Fixing to other

Feature chairs: bird and nest Propriety fixing plate provided n/a n/a
by chair manufacturer.
Mechanical fixing in all
available holes.

Slatted partition Sole plate bolt to floor at Timber head bearer to be fitted Screens are modular and are
min 600 ctrs. Sole plate to be above suspended ceiling level butted together with a double
fitted first and partition sits on back to soffit as engineers biscuit joint to make greater
top, mechanical fix partition detail. Partition head to be combined screen lengths.
(behind skirting) into sole plate. fixed to timber bearer through Joints to the adhesive set.
ceiling.
Picture / window screen Sole plate bolts to floor at Timber head bearer to be fitted n/a
min 600 ctrs. Sole plate to be above suspended ceiling level
fitted first and partition sits on back to soffit as engineers
top, mechanical fix partition detail. Partition head to be
(behind skirting) into sole plate. fixed to timber bearer through
ceiling.
Happy meal column and Sole plate bolts to floor at Timber head bearer to be fitted Happy meal column screen
partition min 600 ctrs. Sole plate to be above suspended ceiling level will form part of longer partition
fitted first and partition sits on back to soffit as engineers assembly. Glued double biscuit
top, mechanical fix partition detail. Partition head to be joint to adjacent partition.
(behind skirting) into sole plate. fixed to timber bearer through
ceiling.
Freestanding benches Fixing grommet bolted down n/a n/a, double benches are
to floor for each bench leg to supplied as a single item and
sit over. are not produced by butting
single benches together.
All tables Bolted fixings into floor through n/a n/a
mild steel pedestal fixing
positions.
Tablet tables As above but including n/a * dependant on location,
recessed chases into walls tablet tables may be
and floors for power and data. connected to an adjacent
Tablet installation by specialist, screen which will act as route
in situ to McDonald’s Samsung for power and data. Screen to
Galaxy Tablet Shop Fitting be fitted as other partitions.
Standards document.
Straw and napkin unit n/a n/a Fixed to slat partition wall via
split battens. Top surface to be
set 900mm AFFL.
Multi function column Bolt fixings into floor via all n/a n/a
location holes provided.

C3.9 Furniture Fixing 3.0 25 July 2017
