■Default case: – The address is treated as truncated, with address bits [1:0] treated as zero for word
accesses, and address bit [0] treated as zero for halfword accesses

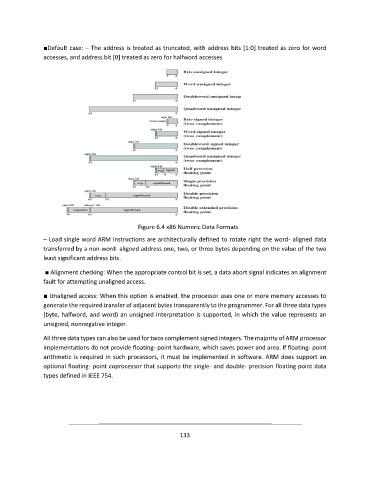

Figure 6.4 x86 Numeric Data Formats

– Load single word ARM instructions are architecturally defined to rotate right the word- aligned data
transferred by a non-word- aligned address one, two, or three bytes depending on the value of the two
least significant address bits.

■ Alignment checking: When the appropriate control bit is set, a data abort signal indicates an alignment
fault for attempting unaligned access.
■ Unaligned access: When this option is enabled, the processor uses one or more memory accesses to
generate the required transfer of adjacent bytes transparently to the programmer. For all three data types
(byte, halfword, and word) an unsigned interpretation is supported, in which the value represents an
unsigned, nonnegative integer.

All three data types can also be used for twos complement signed integers. The majority of ARM processor
implementations do not provide floating- point hardware, which saves power and area. If floating- point
arithmetic is required in such processors, it must be implemented in software. ARM does support an
optional floating- point coprocessor that supports the single- and double- precision floating point data
types defined in IEEE 754.
