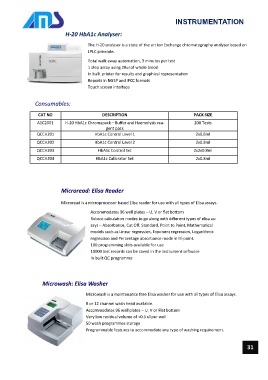

Page 31 - AMS Catalogue 2017

INSTRUMENTATION

H-20 HbA1c Analyser:

The H-20 analyser is a state of the art Ion Exchange chromatography analyser based on
LPLC principle.
Total walk away automation, 3 minutes per test
1 step assay using 20ul of whole blood
In built printer for results and graphical representation
Reports in NGSP and IFCC formats
Touch screen interface

Consumables:

CAT NO DESCRIPTION PACK SIZE

A1C2001 H-20 HbA1c Chromapack – Buffer and Haemolysis rea- 200 Tests
gent pack
QCCH201 HbA1c Control Level 1 2x0.8ml
QCCH202 HbA1c Control Level 2 2x0.8ml
QCCH203 HbA1c Control Set 2x2x0.8ml
QCCH204 HbA1c Calibrator Set 2x0.8ml

Microread: Elisa Reader

Microread is a microprocessor based Elisa reader for use with all types of Elisa assays.
Accommodates 96 well plates – U, V or flat bottom
Robust calculation modes to go along with different types of elisa as-
says – Absorbance, Cut Off, Standard, Point to Point, Mathematical
models such as Linear regression, Exponent regression, Logarithmic
regression and Percentage absorbance mode in lti-point.
100 programming slots available for use
10000 test records can be saved in the instrument software
In built QC programme

Microwash: Elisa Washer

Microwash is a maintenance free Elisa washer for use with all types of Elisa assays.

8 or 12 channel wash head available.
Accommodates 96 well plates – U, V or Flat bottom
Very low residual volume of <0.5 ul per well
50 wash programmes storage
Programmable features to accommodate any type of washing requirement.

31
