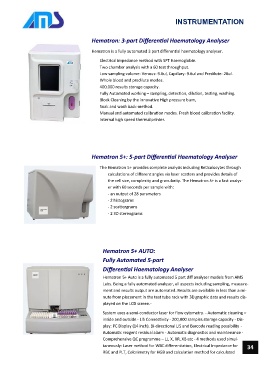

Page 34 - AMS Catalogue 2017

INSTRUMENTATION

Hematron: 3-part Differential Haematology Analyser

Hematron is a fully automated 3 part differential haematology analyser.
Electrical impedance method with SFT Haemoglobin.
Two chamber analysis with a 60 test throughput.
Low sampling volume: Venous: 9.6ul, Capillary: 9.6ul and Predilute: 20ul.
Whole blood and predilute modes.
400,000 results storage capacity.
Fully Automated working – sampling, detection, dilution, testing, washing.
Block Cleaning by the innovative High pressure burn,
Soak and wash back-method.
Manual and automated calibration modes. Fresh blood calibration facility.
Internal high speed thermal printer.

Hematron 5+: 5-part Differential Haematology Analyser

The Hematron 5+ provides complete analysis including Reticulocytes through
calculations of different angles via laser scatters and provides details of
the cell size, complexity and granularity. The Hematron 5+ is a fast analys-
er with 60 seconds per sample with:
- an output of 28 parameters
- 2 histograms
- 2 scattergrams
- 2 3D stereograms

Hematron 5+ AUTO:
Fully Automated 5-part

Differential Haematology Analyser
Hematron 5+ Auto is a fully automated 5 part diff analyser models from AMS
Labs. Being a fully automated analyser, all aspects including sampling, measure-
ment and results output are automated. Results are available in less than a mi-
nute from placement in the test tube rack with 3D graphic data and results dis-
played on the LCD screen.-
System uses a semi-conductor laser for flow cytometry. - Automatic cleaning –
inside and outside - LIS Connectivity - 200,000 samples storage capacity - Dis-
play: PC Display (14 inch), Bi-directional LIS and Barcode reading possibility -
Automatic reagent residual alarm - Automatic diagnostics and maintenance -
Comprehensive QC programme – LJ, X, XR, XB etc - 4 methods used simul-
taneously: Laser method for WBC differentiation, Electrical Impedance for 34
RBC and PLT, Colorimetry for HGB and calculation method for calculated
