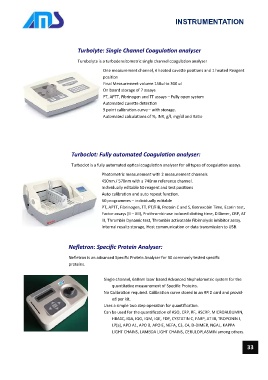

Page 33 - AMS Catalogue 2017

INSTRUMENTATION

Turbolyte: Single Channel Coagulation analyser

Turobolyte is a turbodensitometric single channel coagulation analyser

One measurement channel, 4 heated cuvette positions and 1 heated Reagent
position
Final Measurement volume 150ul to 300 ul
On board storage of 7 assays
PT, APTT, Fibrinogen and TT assays – Fully open system
Automated cuvette detection
9 point calibration curve – with storage.
Automated calculations of %, INR, g/l, mg/dl and Ratio

Turboclot: Fully automated Coagulation analyser:

Turboclot is a fully automated optical coagulation analyser for all types of coagulation assays.

Photometric measurement with 2 measurement channels
450nm / 570nm with a 740nm reference channel.
Individually editable 50 reagent and test positions
Auto calibration and auto repeat function.
50 programmes – individually editable
PT, APTT, Fibrinogen, TT, PT/FIB, Protein C and S, Batroxobin Time, Ecarin test,
Factor assays (II – XII), Prothrombinase induced clotting time, D Dimer, CRP, AT
III, Thrombin Dynamic test, Thrombin activatable Fibirnolysis inhibitor assay.
Internal results storage, Host communication or data transmission to USB.

Nefletron: Specific Protein Analyser:

Nefletron is an advanced Specific Protein Analyser for 30 commonly tested specific
proteins.

Single channel, 650nm laser based Advanced Nephelometric system for the
quantitative measurement of Specific Proteins.
No Calibration required. Calibration curve stored in an RFID card and provid-
ed per kit.
Uses a simple two step operation for quantification.
Can be used for the quantification of ASO, CRP, RF, HSCRP, MICROALBUMIN,
HBA1C, IGA, IGG, IGM, IGE, FDP, CYSTATIN C, FABP, AT III, TROPONIN I,
LP(a), APO A1, APO B, APO E, NEFA, C3, C4, D-DIMER, NGAL, KAPPA
LIGHT CHAINS, LAMBDA LIGHT CHAINS, CERULOPLASMIN among others.

33
