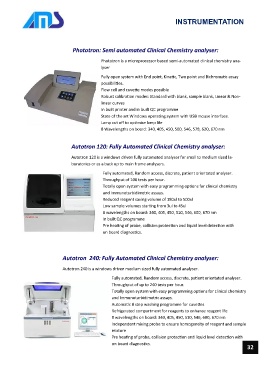

Page 32 - AMS Catalogue 2017

INSTRUMENTATION

Phototron: Semi automated Clinical Chemistry analyser:

Phototron is a microprocessor based semi-automated clinical chemistry ana-
lyser

Fully open system with End point, Kinetic, Two point and Bichromatic assay
possibilities.
Flow cell and cuvette modes possible
Robust calibration modes: Standard with blank, sample blank, Linear & Non-
linear curves
In built printer and in built QC programme
State of the art Windows operating system with USB mouse interface.
Lamp cut off to optimise lamp life
8 Wavelengths on board: 340, 405, 450, 500, 546, 578, 620, 670 nm

Autotron 120: Fully Automated Clinical Chemistry analyser:

Autotron 120 is a windows driven fully automated analyser for small to medium sized la-
boratories or as a back up to main frame analysers.
Fully automated, Random access, discrete, patient orientated analyser.
Throughput of 100 tests per hour.
Totally open system with easy programming options for clinical chemistry
and Immunoturbidimetric assays.
Reduced reagent saving volume of 180ul to 500ul
Low sample volumes starting from 3ul to 45ul
8 wavelengths on board: 340, 405, 450, 510, 546, 600, 670 nm
In built QC programme
Pre heating of probe, collision protection and liquid level detection with
on board diagnostics.

Autotron 240: Fully Automated Clinical Chemistry analyser:

Autotron 240 is a windows driven medium sized fully automated analyser.
Fully automated, Random access, discrete, patient orientated analyser.
Throughput of up to 240 tests per hour.
Totally open system with easy programming options for clinical chemistry
and Immunoturbidimetric assays.
Automatic 8 step washing programme for cuvettes
Refrigerated compartment for reagents to enhance reagent life
8 wavelengths on board: 340, 405, 450, 510, 546, 600, 670 nm
Independent mixing probe to ensure homogeneity of reagent and sample
mixture
Pre heating of probe, collision protection and liquid level detection with
on board diagnostics.
32
