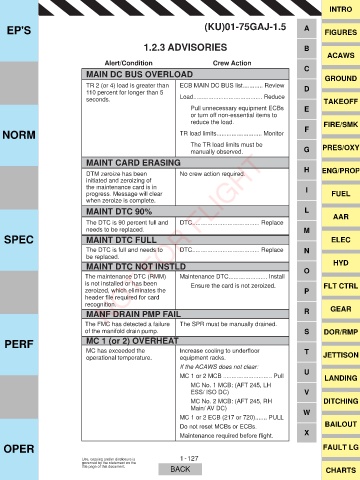

Page 155 - (KU)01-75GAJ-1.5 - Change 1

INTRO

EP'S (KU)01-75GAJ-1.5 A FIGURES

1.2.3 ADVISORIES B
ACAWS
Alert/Condition Crew Action C
MAIN DC BUS OVERLOAD GROUND

TR 2 (or 4) load is greater than ECB MAIN DC BUS list............ Review D
110 percent for longer than 5
seconds. Load......................................... Reduce TAKEOFF
Pull unnecessary equipment ECBs E
or turn off non-essential items to
reduce the load. FIRE/SMK
NORM TR load limits........................... Monitor F

The TR load limits must be PRES/OXY
NOT FOR FLIGHT
manually observed. G
MAINT CARD ERASING
H ENG/PROP
DTM zeroize has been No crew action required.
initiated and zeroizing of
the maintenance card is in I
progress. Message will clear FUEL
when zeroize is complete.
MAINT DTC 90% L
AAR
The DTC is 90 percent full and DTC........................................ Replace
needs to be replaced. M
SPEC MAINT DTC FULL ELEC

The DTC is full and needs to DTC........................................ Replace N
be replaced.
MAINT DTC NOT INSTLD O HYD
The maintenance DTC (RMM) Maintenance DTC....................... Install
is not installed or has been Ensure the card is not zeroized. FLT CTRL
zeroized, which eliminates the P
KHDGHU ¿OH UHTXLUHG IRU FDUG
recognition. GEAR
MANF DRAIN PMP FAIL R
The FMC has detected a failure The SPR must be manually drained.
of the manifold drain pump. S DOR/RMP
PERF MC 1 (or 2) OVERHEAT

MC has exceeded the ,QFUHDVH FRROLQJ WR XQGHUÀRRU T JETTISON
operational temperature. equipment racks.
If the ACAWS does not clear: U
MC 1 or 2 MCB ............................. Pull LANDING
MC No. 1 MCB: (AFT 245, LH
ESS/ ISO DC) V
MC No. 2 MCB: (AFT 245, RH DITCHING
Main/ AV DC) W
MC 1 or 2 ECB (217 or 720)....... PULL
Do not reset MCBs or ECBs. BAILOUT
0DLQWHQDQFH UHTXLUHG EHIRUH ÀLJKW X
OPER FAULT LG
