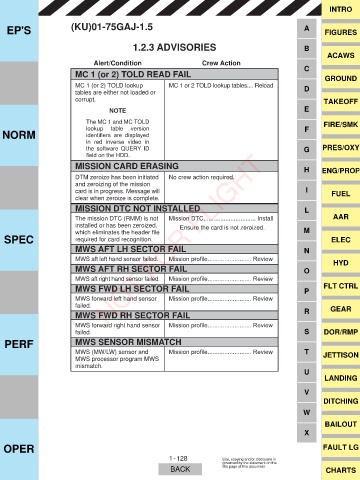

Page 156 - (KU)01-75GAJ-1.5 - Change 1

INTRO

EP'S (KU)01-75GAJ-1.5 A FIGURES

1.2.3 ADVISORIES B
ACAWS
Alert/Condition Crew Action C
MC 1 (or 2) TOLD READ FAIL GROUND

MC 1 (or 2) TOLD lookup MC 1 or 2 TOLD lookup tables.... Reload D
tables are either not loaded or
corrupt. TAKEOFF
NOTE E
The MC 1 and MC TOLD FIRE/SMK
NORM lookup table version F
LGHQWL¿HUV DUH GLVSOD\HG
in red inverse video in
the software QUERY ID G PRES/OXY
NOT FOR FLIGHT
¿HOG RQ WKH +''
MISSION CARD ERASING H ENG/PROP

DTM zeroize has been initiated No crew action required.
and zeroizing of the mission
card is in progress. Message will I FUEL
clear when zeroize is complete.
MISSION DTC NOT INSTALLED L
The mission DTC (RMM) is not Mission DTC............................... Install AAR
installed or has been zeroized, Ensure the card is not zeroized.
ZKLFK HOLPLQDWHV WKH KHDGHU ¿OH M
SPEC required for card recognition. ELEC
MWS AFT LH SECTOR FAIL N

MWS aft left hand sensor failed. 0LVVLRQ SUR¿OH 5HYLHZ HYD
MWS AFT RH SECTOR FAIL O

MWS aft right hand sensor failed. 0LVVLRQ SUR¿OH 5HYLHZ
MWS FWD LH SECTOR FAIL P FLT CTRL
MWS forward left hand sensor 0LVVLRQ SUR¿OH 5HYLHZ
failed. R GEAR
MWS FWD RH SECTOR FAIL
MWS forward right hand sensor 0LVVLRQ SUR¿OH 5HYLHZ
failed. S DOR/RMP
PERF MWS SENSOR MISMATCH

MWS (MW/LW) sensor and 0LVVLRQ SUR¿OH 5HYLHZ T JETTISON
MWS processor program MWS
mismatch.
U
LANDING

V
DITCHING
W
BAILOUT
X

OPER FAULT LG
