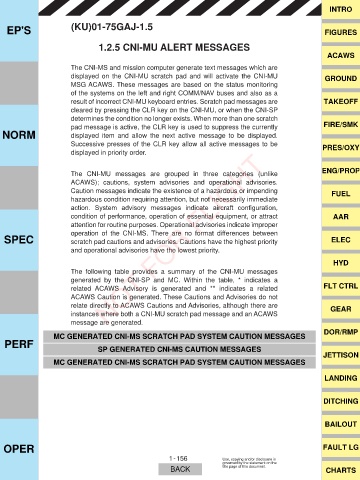

1.2.5 CNI-MU ALERT MESSAGES
ACAWS

The CNI-MS and mission computer generate text messages which are
displayed on the CNI-MU scratch pad and will activate the CNI-MU GROUND
MSG ACAWS. These messages are based on the status monitoring
of the systems on the left and right COMM/NAV buses and also as a
result of incorrect CNI-MU keyboard entries. Scratch pad messages are TAKEOFF
cleared by pressing the CLR key on the CNI-MU, or when the CNI-SP
determines the condition no longer exists. When more than one scratch
pad message is active, the CLR key is used to suppress the currently FIRE/SMK
NORM displayed item and allow the next active message to be displayed.

Successive presses of the CLR key allow all active messages to be PRES/OXY
NOT FOR FLIGHT
displayed in priority order.

ENG/PROP
The CNI-MU messages are grouped in three categories (unlike
ACAWS); cautions, system advisories and operational advisories.
Caution messages indicate the existence of a hazardous or impending FUEL
hazardous condition requiring attention, but not necessarily immediate
DFWLRQ 6\VWHP DGYLVRU\ PHVVDJHV LQGLFDWH DLUFUDIW FRQ¿JXUDWLRQ
condition of performance, operation of essential equipment, or attract AAR
attention for routine purposes. Operational advisories indicate improper
SPEC operation of the CNI-MS. There are no format differences between ELEC
scratch pad cautions and advisories. Cautions have the highest priority
and operational advisories have the lowest priority.
HYD
The following table provides a summary of the CNI-MU messages
generated by the CNI-SP and MC. Within the table, * indicates a
related ACAWS Advisory is generated and ** indicates a related FLT CTRL
ACAWS Caution is generated. These Cautions and Advisories do not
relate directly to ACAWS Cautions and Advisories, although there are GEAR
instances where both a CNI-MU scratch pad message and an ACAWS
message are generated.
DOR/RMP
MC GENERATED CNI-MS SCRATCH PAD SYSTEM CAUTION MESSAGES
PERF
SP GENERATED CNI-MS CAUTION MESSAGES
JETTISON
MC GENERATED CNI-MS SCRATCH PAD SYSTEM CAUTION MESSAGES

LANDING

DITCHING

BAILOUT

OPER FAULT LG
