EP'S (KU)01-75GAJ-1.5 A FIGURES

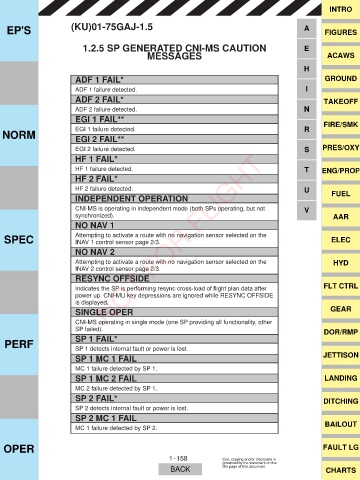

1.2.5 SP GENERATED CNI-MS CAUTION E
MESSAGES ACAWS

H

ADF 1 FAIL* GROUND
ADF 1 failure detected. I
ADF 2 FAIL* TAKEOFF
ADF 2 failure detected. N
EGI 1 FAIL** FIRE/SMK
NORM EGI 1 failure detected. R
EGI 2 FAIL**
EGI 2 failure detected. S PRES/OXY
NOT FOR FLIGHT
HF 1 FAIL*
HF 1 failure detected. T ENG/PROP
HF 2 FAIL*
HF 2 failure detected. U FUEL
INDEPENDENT OPERATION
CNI-MS is operating in independent mode (both SPs operating, but not V
synchronized). AAR
NO NAV 1
SPEC Attempting to activate a route with no navigation sensor selected on the ELEC
INAV 1 control sensor page 2/3.
NO NAV 2
Attempting to activate a route with no navigation sensor selected on the HYD
INAV 2 control sensor page 2/3.
RESYNC OFFSIDE

,QGLFDWHV WKH 63 LV SHUIRUPLQJ UHV\QF FURVV ORDG RI ÀLJKW SODQ GDWD DIWHU FLT CTRL
power up. CNI-MU key depressions are ignored while RESYNC OFFSIDE
is displayed.
SINGLE OPER GEAR

CNI-MS operating in single mode (one SP providing all functionality, other
SP failed). DOR/RMP
PERF SP 1 FAIL*
SP 1 detects internal fault or power is lost.
SP 1 MC 1 FAIL JETTISON
MC 1 failure detected by SP 1.
SP 1 MC 2 FAIL LANDING
MC 2 failure detected by SP 1.
SP 2 FAIL* DITCHING

SP 2 detects internal fault or power is lost.
SP 2 MC 1 FAIL

MC 1 failure detected by SP 2. BAILOUT

OPER FAULT LG
