Page 194 - (KU)01-75GAJ-1.5 - Change 1

INTRO

EP'S (KU)01-75GAJ-1.5 * FIGURES

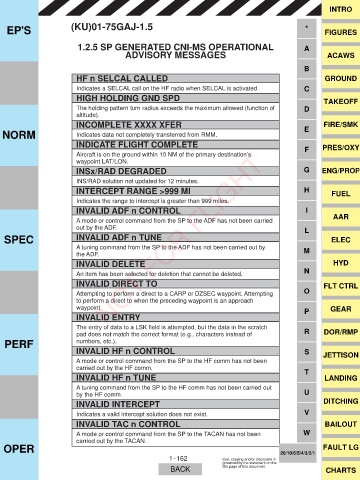

1.2.5 SP GENERATED CNI-MS OPERATIONAL A
ADVISORY MESSAGES ACAWS

B
HF n SELCAL CALLED GROUND

Indicates a SELCAL call on the HF radio when SELCAL is activated. C
HIGH HOLDING GND SPD TAKEOFF

The holding pattern turn radius exceeds the maximum allowed (function of D
altitude).
INCOMPLETE XXXX XFER E FIRE/SMK
NORM Indicates data not completely transferred from RMM.

INDICATE FLIGHT COMPLETE F PRES/OXY
NOT FOR FLIGHT
Aircraft is on the ground within 10 NM of the primary destination’s
waypoint LAT/LON.
INSx/RAD DEGRADED G ENG/PROP

INS/RAD solution not updated for 12 minutes.
INTERCEPT RANGE >999 MI H FUEL

Indicates the range to intercept is greater than 999 miles.
INVALID ADF n CONTROL I

A mode or control command from the SP to the ADF has not been carried AAR
out by the ADF. L
SPEC INVALID ADF n TUNE ELEC
A tuning command from the SP to the ADF has not been carried out by M
the ADF.
INVALID DELETE HYD
An item has been selected for deletion that cannot be deleted. N
INVALID DIRECT TO FLT CTRL
Attempting to perform a direct to a CARP or DZSEC waypoint. Attempting O
to perform a direct to when the preceding waypoint is an approach
waypoint. P GEAR
INVALID ENTRY

7KH HQWU\ RI GDWD WR D /6. ¿HOG LV DWWHPSWHG EXW WKH GDWD LQ WKH VFUDWFK
pad does not match the correct format (e.g., characters instead of R DOR/RMP
PERF numbers, etc.).
INVALID HF n CONTROL S JETTISON

A mode or control command from the SP to the HF comm has not been
carried out by the HF comm. T
INVALID HF n TUNE LANDING
A tuning command from the SP to the HF comm has not been carried out
by the HF comm. U
INVALID INTERCEPT DITCHING

Indicates a valid intercept solution does not exist. V
INVALID TAC n CONTROL BAILOUT

A mode or control command from the SP to the TACAN has not been W
carried out by the TACAN.
OPER 20/10/6/5/4/3/2/1 FAULT LG

1 -162 Use, copying and/or disclosure is
governed by the statement on the
BACK title page of this document. CHARTS
