EP'S (KU)01-75GAJ-1.5 C FIGURES

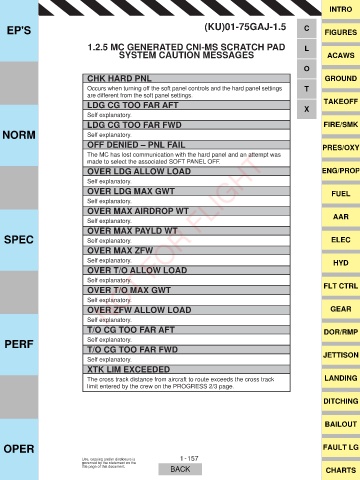

1.2.5 MC GENERATED CNI-MS SCRATCH PAD L
SYSTEM CAUTION MESSAGES ACAWS

O
CHK HARD PNL GROUND

Occurs when turning off the soft panel controls and the hard panel settings T
are different from the soft panel settings.
LDG CG TOO FAR AFT X TAKEOFF
Self explanatory.
LDG CG TOO FAR FWD FIRE/SMK
NORM Self explanatory.

OFF DENIED – PNL FAIL PRES/OXY
NOT FOR FLIGHT
The MC has lost communication with the hard panel and an attempt was
made to select the associated SOFT PANEL OFF.
OVER LDG ALLOW LOAD ENG/PROP

Self explanatory.
OVER LDG MAX GWT FUEL

Self explanatory.
OVER MAX AIRDROP WT

Self explanatory. AAR
OVER MAX PAYLD WT
SPEC Self explanatory. ELEC

OVER MAX ZFW
Self explanatory. HYD
OVER T/O ALLOW LOAD
Self explanatory. FLT CTRL
OVER T/O MAX GWT
Self explanatory.
OVER ZFW ALLOW LOAD GEAR
Self explanatory.
T/O CG TOO FAR AFT DOR/RMP
PERF Self explanatory.
T/O CG TOO FAR FWD JETTISON
Self explanatory.
XTK LIM EXCEEDED

The cross track distance from aircraft to route exceeds the cross track LANDING
limit entered by the crew on the PROGRESS 2/3 page.

DITCHING

BAILOUT

OPER FAULT LG
