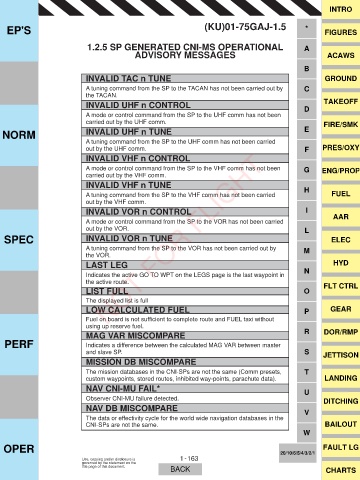

1.2.5 SP GENERATED CNI-MS OPERATIONAL A
ADVISORY MESSAGES ACAWS

B
INVALID TAC n TUNE GROUND

A tuning command from the SP to the TACAN has not been carried out by C
the TACAN.
INVALID UHF n CONTROL D TAKEOFF
A mode or control command from the SP to the UHF comm has not been
carried out by the UHF comm. FIRE/SMK
NORM INVALID UHF n TUNE E
A tuning command from the SP to the UHF comm has not been carried
out by the UHF comm. F PRES/OXY
NOT FOR FLIGHT
INVALID VHF n CONTROL
A mode or control command from the SP to the VHF comm has not been G ENG/PROP
carried out by the VHF comm.
INVALID VHF n TUNE H

A tuning command from the SP to the VHF comm has not been carried FUEL
out by the VHF comm.
INVALID VOR n CONTROL I AAR
A mode or control command from the SP to the VOR has not been carried
out by the VOR. L
SPEC INVALID VOR n TUNE ELEC
A tuning command from the SP to the VOR has not been carried out by M
the VOR.
LAST LEG N HYD
Indicates the active GO TO WPT on the LEGS page is the last waypoint in
the active route. FLT CTRL
LIST FULL O
The displayed list is full
LOW CALCULATED FUEL P GEAR
)XHO RQ ERDUG LV QRW VXI¿FLHQW WR FRPSOHWH URXWH DQG )8(/ WD[L ZLWKRXW
using up reserve fuel.
MAG VAR MISCOMPARE R DOR/RMP
PERF Indicates a difference between the calculated MAG VAR between master

and slave SP. S JETTISON
MISSION DB MISCOMPARE
The mission databases in the CNI-SPs are not the same (Comm presets, T
custom waypoints, stored routes, inhibited way-points, parachute data). LANDING
NAV CNI-MU FAIL* U

Observer CNI-MU failure detected. DITCHING
NAV DB MISCOMPARE V

The data or effectivity cycle for the world wide navigation databases in the
CNI-SPs are not the same. BAILOUT
W

OPER 20/10/6/5/4/3/2/1 FAULT LG
