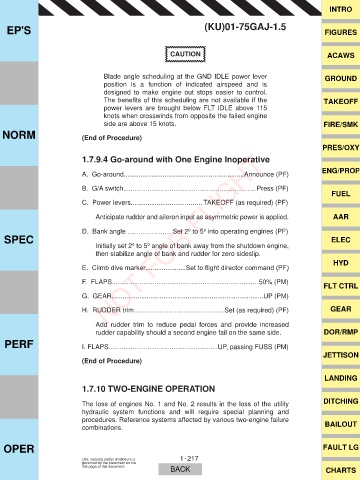

Page 253 - (KU)01-75GAJ-1.5 - Change 1
P. 253

INTRO


   EP'S                                                              (KU)01-75GAJ-1.5                       FIGURES



                                                         CAUTION                                             ACAWS



                                   Blade angle scheduling at the GND IDLE power lever                       GROUND
                                   position is a function of indicated airspeed and is
                                   designed to make engine out stops easier to control.
                                   7KH EHQH¿WV RI WKLV VFKHGXOLQJ DUH QRW DYDLODEOH LI WKH                  TAKEOFF
                                   power levers are brought below FLT IDLE above 115
                                   knots when crosswinds from opposite the failed engine
                                   side are above 15 knots.                                                 FIRE/SMK
  NORM                      (End of Procedure)

                                                                                                            PRES/OXY

                            1.7.9.4 Go-around with One Engine Inoperative
                                                                                                           ENG/PROP
                            A.  Go-around.................................................................Announce (PF)

                            B.  G/A switch........................................................................Press (PF)
                                                                                                               FUEL
                            C.  Power levers...................................... TAKEOFF (as required) (PF)

                                 Anticipate rudder and aileron input as asymmetric power is applied.           AAR

                            D.  Bank angle......................... Set 2º to 5º into operating engines (PF)
  SPEC                              NOT FOR FLIGHT                                                             ELEC
                                 Initially set 2º to 5º angle of bank away from the shutdown engine,
                                 then stabilize angle of bank and rudder for zero sideslip.
                                                                                                               HYD
                            (   &OLPE GLYH PDUNHU                      6HW WR ÀLJKW GLUHFWRU FRPPDQG  3)

                            F.  FLAPS............................................................................... 50% (PM)
                                                                                                            FLT CTRL
                            G.  GEAR..................................................................................UP (PM)

                            H.  RUDDER trim.................................................Set (as required) (PF)  GEAR

                                 Add rudder trim to reduce pedal forces and provide increased
                                 rudder capability should a second engine fail on the same side.            DOR/RMP
  PERF                      I. FLAPS...........................................................UP, passing FUSS (PM)

                                                                                                            JETTISON
                            (End of Procedure)

                                                                                                            LANDING
                            1.7.10 TWO-ENGINE OPERATION

                                                                                                            DITCHING
                            The loss of engines No. 1 and No. 2 results in the loss of the utility
                            hydraulic system functions and will require special planning and
                            procedures. Reference systems affected by various two-engine failure            BAILOUT
                            combinations.


  OPER                                                                                                      FAULT LG

                            Use, copying and/or disclosure is   1 -217
                            governed by the statement on the
                            title page of this document.  BACK                                               CHARTS
