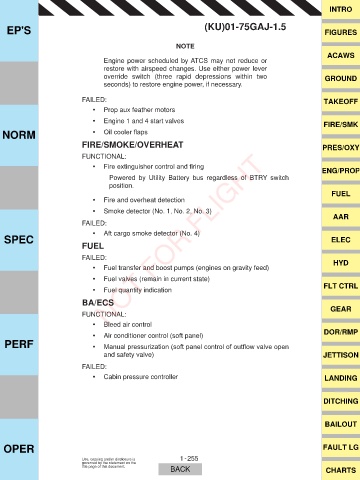

   EP'S                                                              (KU)01-75GAJ-1.5                       FIGURES


                                                           NOTE
                                                                                                             ACAWS
                                   Engine power scheduled by ATCS may not reduce or
                                   restore with airspeed changes. Use either power lever
                                   override switch (three rapid depressions within two                      GROUND
                                   seconds) to restore engine power, if necessary.

                            FAILED:                                                                         TAKEOFF
                                  ‡  Prop aux feather motors
                                  ‡  Engine 1 and 4 start valves                                            FIRE/SMK
  NORM                            ‡  2LO FRROHU ÀDSV

                            FIRE/SMOKE/OVERHEAT                                                             PRES/OXY

                            FUNCTIONAL:
                                  ‡  )LUH H[WLQJXLVKHU FRQWURO DQG ¿ULQJ
                                                                                                           ENG/PROP
                                     Powered by Utility Battery bus regardless of BTRY switch
                                     position.
                                                                                                               FUEL
                                  ‡  Fire and overheat detection

                                  ‡  Smoke detector (No. 1, No. 2, No. 3)
                                                                                                               AAR
                            FAILED:
                                  ‡
                                   Aft cargo smoke detector (No. 4)
  SPEC                            ‡ NOT FOR FLIGHT                                                             ELEC
                            FUEL
                            FAILED:                                                                            HYD
                                  ‡  Fuel transfer and boost pumps (engines on gravity feed)

                                  ‡  Fuel valves (remain in current state)
                                                                                                            FLT CTRL
                                  ‡  Fuel quantity indication

                            BA/ECS
                                                                                                              GEAR
                            FUNCTIONAL:
                                   Bleed air control
                                                                                                            DOR/RMP
                                  ‡  Air conditioner control (soft panel)
  PERF                            ‡  0DQXDO SUHVVXUL]DWLRQ  VRIW SDQHO FRQWURO RI RXWÀRZ YDOYH RSHQ

                                   and safety valve)                                                        JETTISON

                            FAILED:
                                  ‡  Cabin pressure controller                                              LANDING



                                                                                                            DITCHING


                                                                                                            BAILOUT



  OPER                                                                                                      FAULT LG
