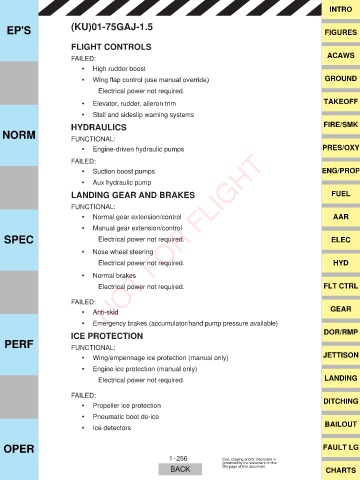

Page 296 - (KU)01-75GAJ-1.5 - Change 1

INTRO

EP'S (KU)01-75GAJ-1.5 FIGURES

FLIGHT CONTROLS
ACAWS
FAILED:
‡ High rudder boost

‡ :LQJ ÀDS FRQWURO XVH PDQXDO RYHUULGH GROUND
Electrical power not required.

‡ Elevator, rudder, aileron trim TAKEOFF
‡ Stall and sideslip warning systems
HYDRAULICS FIRE/SMK
NORM FUNCTIONAL:

‡ Engine-driven hydraulic pumps PRES/OXY
FAILED:
‡ Suction boost pumps ENG/PROP

‡ Aux hydraulic pump
LANDING GEAR AND BRAKES FUEL

FUNCTIONAL:
‡ Normal gear extension/control AAR
‡ Manual gear extension/control
SPEC ‡ NOT FOR FLIGHT ELEC
Electrical power not required.
‡ Nose wheel steering

Electrical power not required. HYD
‡ Normal brakes
Electrical power not required. FLT CTRL

FAILED:
‡ Anti-skid GEAR
Emergency brakes (accumulator/hand pump pressure available)
DOR/RMP
ICE PROTECTION
PERF FUNCTIONAL:

‡ Wing/empennage ice protection (manual only) JETTISON
‡ Engine ice protection (manual only)

Electrical power not required. LANDING

FAILED: DITCHING
‡ Propeller ice protection
‡ Pneumatic boot de-ice
BAILOUT
‡ Ice detectors

OPER FAULT LG
