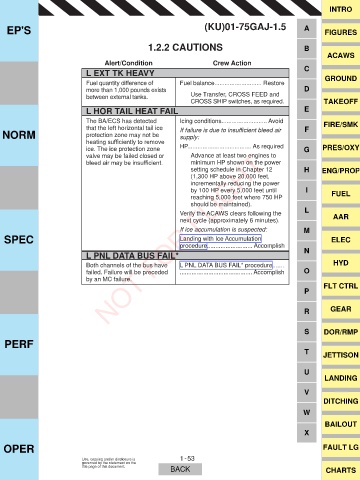

Page 67 - (KU)01-75GAJ-1.5 - Change 1

INTRO

EP'S (KU)01-75GAJ-1.5 A FIGURES

1.2.2 CAUTIONS B
ACAWS
Alert/Condition Crew Action
L EXT TK HEAVY C GROUND
Fuel quantity difference of Fuel balance............................ Restore
more than 1,000 pounds exists D
between external tanks. Use Transfer, CROSS FEED and
CROSS SHIP switches, as required. TAKEOFF
L HOR TAIL HEAT FAIL E
The BA/ECS has detected Icing conditions........................... Avoid FIRE/SMK
NORM that the left horizontal tail ice If failure is due to insuf¿cient bleed air F
protection zone may not be
supply:
KHDWLQJ VXI¿FLHQWO\ WR UHPRYH
ice. The ice protection zone HP...................................... As required G PRES/OXY
valve may be failed closed or Advance at least two engines to
EOHHG DLU PD\ EH LQVXI¿FLHQW minimum HP shown on the power
setting schedule in Chapter 12 H ENG/PROP
(1,300 HP above 20,000 feet,
incrementally reducing the power
by 100 HP every 5,000 feet until I FUEL
reaching 5,000 feet where 750 HP
should be maintained).
Verify the ACAWS clears following the L AAR
next cycle (approximately 6 minutes).
If ice accumulation is suspected: M
SPEC NOT FOR FLIGHT ELEC
Landing with Ice Accumulation
procedure........................... Accomplish N
L PNL DATA BUS FAIL*
Both channels of the bus have L PNL DATA BUS FAIL* procedure....... HYD
failed. Failure will be preceded ........................................... Accomplish O
by an MC failure.
FLT CTRL
P

R GEAR

S DOR/RMP
PERF

T JETTISON

U
LANDING

V
DITCHING
W
BAILOUT
X

OPER FAULT LG

-
