69 IITGN-UL/Façade 70 IITGN-UL/Façade

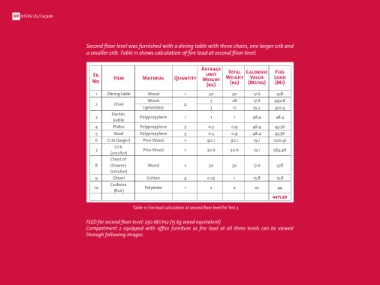

Second floor level was furnished with a dining table with three chairs, one larger crib and
a smaller crib. Table 11 shows calculation of fire load at second floor level.

Average
Fire
Total Calorific
Sr. Item Material Quantity unit Weight Value Load

No Weight (kg) (MJ/kg) (MJ)
(kg)
1 Dining table Wood 1 30 30 17.6 528
Wood 7 28 17.6 492.8
2 Chair 4
Upholstery 3 12 35.2 422.4
Electric
3 Polypropylene 1 1 1 48.4 48.4
kettle
4 Plates Polypropylene 3 0.3 0.9 48.4 43.56 Image 23: Fire load scenario at ground floor level
5 Bowl Polypropylene 3 0.3 0.9 48.4 43.56 for Test 3 (20 kg w.eq.)
6 Crib (larger) Pine Wood 1 90.1 90.1 19.1 1720.91
Crib
7 Pine Wood 1 30.6 30.6 19.1 584.46
(smaller)
Chest of
8 Drawers Wood 1 30 30 17.6 528
(smaller)
9 Shawl Cotton 4 0.25 1 15.8 15.8 Image 24: Fire load scenario at first floor level
Curtains for Test 3 (26 kg w.eq.)
10 Polyester 1 2 2 22 44
(Pair)
4471.89

Table 11: Fire load calculation at second floor level for Test 3

FLED for second floor level: 250 MJ/m2 (15 kg wood equivalent)
Compartment 2 equipped with office furniture as fire load at all three levels can be viewed
through following images.

Image 25: Fire load scenario at second floor level
for Test 3 (15 kg w.eq.)
