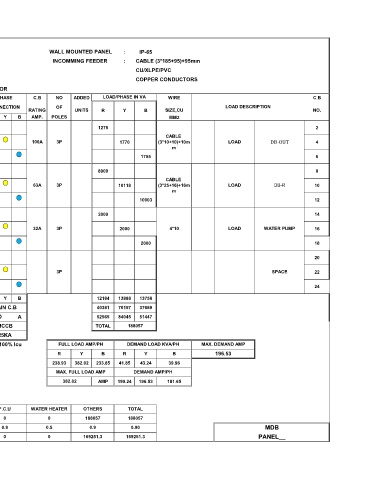

PROJECT NAME : يناطحقلا ببشم لايف WALL MOUNTED PANEL : IP-65
DISTRIBUTION BOARD NAME : MDB INCOMMING FEEDER : CABLE (3*185+95)+95mm
MAIN INCOMING CIRCUIT BREAKER : 3PH MCCB C.B 300 AMP. CU/XLPE/PVC
SHORT CIRCUIT BREAKING CAPACITY 25KA COPPER CONDUCTORS
GROUND FLOOR
C.B WIRE LOAD/PHASE IN VA ADDED NO C.B PHASE C.B NO ADDED LOAD/PHASE IN VA WIRE C.B
OF CONNECTION OF LOAD DESCRIPTION
NO. SIZE,CU R Y B UNITS RATING RATING UNITS R Y B SIZE,CU NO.
MM2 POLES AMP. R Y B AMP. POLES MM2
1 19226 1275 2
CABLE CABLE
3 DB-G LOAD (3*35+16)+16m 20412 3P 100A 100A 3P 1770 (3*10+10)+10m LOAD DB-OUT 4
m m
5 19005 1755 6
7 17905 8909 8
CABLE CABLE
9 DB-F LOAD (3*35+16)+16m 16745 3P 100A 63A 3P 10118 (3*25+16)+16m LOAD DB-R 10
m m
11 14192 10003 12
13 3000 2000 14
CABLE
15 ELEVATOR LOAD 4*10 (3*25+16)+16m 3000 3P 40A 32A 3P 2000 4*10 LOAD WATER PUMP 16
m
17 3000 2000 18
19 250 20
CABLE
21 POOL (3*25+16)+16m 30000 3P 80A 3P SPACE 22
m
23 1492 24
40381 70157 37689 R Y B 12184 13888 13758
MAIN C.B 40381 70157 37689
250 A 52565 84045 51447
MCCB TOTAL 188057
NOTES :- 25KA
CT : CONTACTOR WITH TIMER & P.B Ics=100% Icu FULL LOAD AMP/PH DEMAND LOAD KVA/PH MAX. DEMAND AMP
CTT : CONTACTOR WITH TIMER & PHOTO CELL R Y B R Y B 196.53
ELR : EARTH LEAKAGE 30 mA 238.93 382.02 233.85 41.85 43.24 39.96
MAX. FULL LOAD AMP DEMAND AMP/PH
382.02 AMP 190.24 196.53 181.65
CONNECTED LOAD LIGHTING SOCKET P/SOCKET AIR CONDITION F.C.U WATER HEATER OTHERS TOTAL
LOAD IN VA 0 0 0 0 0 0 188057 188057
DEMAND FACTOR 0.8 0.9 0.9 0.85 0.8 0.5 0.9 0.90 MDB
ACTUAL LOAD 0 0 0 0 0 0 169251.3 169251.3 PANEL__
