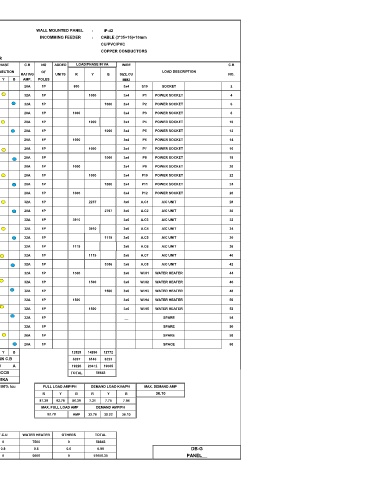

PROJECT NAME : يناطحقلا ببشم لايف WALL MOUNTED PANEL : IP-42
DISTRIBUTION BOARD NAME : DB-G INCOMMING FEEDER : CABLE (3*35+16)+16mm
MAIN INCOMING CIRCUIT BREAKER : 3PH MCCB C.B 125 AMP. CU/PVC/PVC
SHORT CIRCUIT BREAKING CAPACITY 25KA COPPER CONDUCTORS
GROUD FLOOR
C.B WIRE LOAD/PHASE IN VA ADDED NO C.B PHASE C.B NO ADDED LOAD/PHASE IN VA WIRE C.B
OF CONNECTION OF LOAD DESCRIPTION
NO. SIZE,CU R Y B UNITS RATING RATING UNITS R Y B SIZE,CU NO.
MM2 POLES AMP. R Y B AMP. POLES MM2
1 LIGHTING L1 3x3 375 1P 16A 20A 1P 800 3x4 S10 SOCKET 2
3 LIGHTING L2 3x3 605 1P 16A 32A 1P 1000 3x4 P1 POWER SOCKET 4
5 LIGHTING L3 3x3 375 1P 16A 32A 1P 1000 3x4 P2 POWER SOCKET 6
7 LIGHTING L4 3x3 685 1P 16A 20A 1P 1000 3x4 P3 POWER SOCKET 8
9 LIGHTING L5 3x3 633 1P 16A 20A 1P 1000 3x4 P4 POWER SOCKET 10
11 LIGHTING L6 3x3 775 1P 16A 20A 1P 1000 3x4 P5 POWER SOCKET 12
13 LIGHTING L7 3x3 375 1P 16A 20A 1P 1000 3x4 P6 POWER SOCKET 14
15 LIGHTING L8 3x3 323 1P 16A 20A 1P 1000 3x4 P7 POWER SOCKET 16
17 LIGHTING L9 3x3 375 1P 16A 20A 1P 1000 3x4 P8 POWER SOCKET 18
19 LIGHTING L10 3x3 1140 1P 16A 20A 1P 1000 3x4 P9 POWER SOCKET 20
21 LIGHTING L11 3x3 560 1P 16A 20A 1P 1000 3x4 P10 POWER SOCKET 22
23 LIGHTING L12 3x3 148 1P 16A 20A 1P 1000 3x4 P11 POWER SOCKET 24
25 LIGHTING L13 3x3 632 1P 16A 20A 1P 1000 3x4 P12 POWER SOCKET 26
27 LIGHTING L14 3x3 375 1P 16A 32A 1P 2237 3x6 A.C1 A/C UNIT 28
29 LIGHTING L15 3x3 510 1P 16A 20A 1P 2797 3x6 A.C2 A/C UNIT 30
31 LIGHTING SS-1 3x3 190 1P 16A 32A 1P 3910 3x6 A.C3 A/C UNIT 32
33 LIGHTING SS-2 3x3 600 1P 16A 32A 1P 3910 3x6 A.C4 A/C UNIT 34
35 LIGHTING SS-3 3x3 800 1P 16A 32A 1P 1119 3x6 A.C5 A/C UNIT 36
37 SOCKET S1 3x4 1000 1P 20A 32A 1P 1119 3x6 A.C6 A/C UNIT 38
39 SOCKET S2 3x4 800 1P 20A 32A 1P 1119 3x6 A.C7 A/C UNIT 40
41 SOCKET S3 3x4 850 1P 20A 32A 1P 3356 3x6 A.C8 A/C UNIT 42
43 SOCKET S4 3x4 1000 1P 20A 32A 1P 1500 3x6 W.H1 WATER HEATER 44
45 SOCKET S5 3x4 1250 1P 20A 32A 1P 1500 3x6 W.H2 WATER HEATER 46
47 SOCKET S6 3x4 1500 1P 20A 32A 1P 1500 3x6 W.H3 WATER HEATER 48
49 SOCKET S7 3x4 1000 1P 20A 32A 1P 1500 3x6 W.H4 WATER HEATER 50
51 SOCKET S8 3x4 1000 1P 20A 32A 1P 1500 3x6 W.H5 WATER HEATER 52
53 SOCKET S9 3x4 900 1P 20A 32A 1P __ SPARE 54
55 SPARE 1P 20A 32A 1P SPARE 56
57 SPARE 1P 16A 26A 1P SPARE 58
59 SPACE 1P 20A 1P SPACE 60
6397 6146 6233 R Y B 12829 14266 12772
MAIN C.B 6397 6146 6233
100 A 19226 20412 19005
MCCB TOTAL 58643
NOTES :- 25KA
CT : CONTACTOR WITH TIMER & P.B Ics=100% Icu FULL LOAD AMP/PH DEMAND LOAD KVA/PH MAX. DEMAND AMP
CTT : CONTACTOR WITH TIMER & PHOTO CELL R Y B R Y B 36.10
ELR : EARTH LEAKAGE 30 mA 87.39 92.78 86.39 7.21 7.75 7.94
MAX. FULL LOAD AMP DEMAND AMP/PH
92.78 AMP 32.76 35.22 36.10
CONNECTED LOAD LIGHTING SOCKET P/SOCKET AIR CONDITION F.C.U WATER HEATER OTHERS TOTAL
LOAD IN VA 9476 10100 12000 19567 0 7500 0 58643
DEMAND FACTOR 0.9 0.9 0.9 0.85 0.8 0.8 0.6 0.90 DB-G
ACTUAL LOAD 8528.4 9090 10800 16631.95 0 6000 0 51050.35 PANEL__
