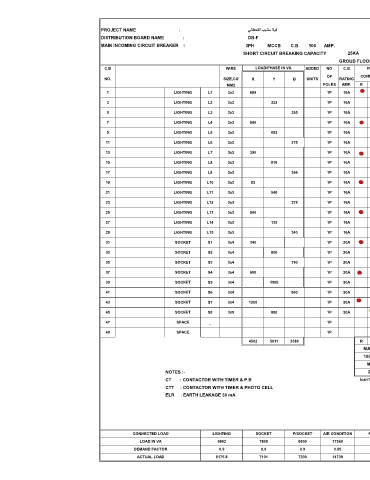

PROJECT NAME : يناطحقلا ببشم لايف WALL MOUNTED PANEL : IP-42
DISTRIBUTION BOARD NAME : DB-F INCOMMING FEEDER : CABLE (3*35+16)+16mm
MAIN INCOMING CIRCUIT BREAKER : 3PH MCCB C.B 100 AMP. CU/PVC/PVC
SHORT CIRCUIT BREAKING CAPACITY 25KA COPPER CONDUCTORS
GROUD FLOOR
C.B WIRE LOAD/PHASE IN VA ADDED NO C.B PHASE C.B NO ADDED LOAD/PHASE IN VA WIRE C.B
OF CONNECTION OF LOAD DESCRIPTION
NO. SIZE,CU R Y B UNITS RATING RATING UNITS R Y B SIZE,CU NO.
MM2 POLES AMP. R Y B AMP. POLES MM2
1 LIGHTING L1 3x3 689 1P 16A 20A 1P 1250 3x4 S9 SOCKET 2
3 LIGHTING L2 3x3 323 1P 16A 20A 1P 1600 3x4 S10 SOCKET 4
5 LIGHTING L3 3x3 355 1P 16A 20A 1P 1150 3x4 S11 SOCKET 6
7 LIGHTING L4 3x3 840 1P 16A 20A 1P 1000 3x4 P1 POWER SOCKET 8
9 LIGHTING L5 3x3 653 1P 16A 20A 1P 1000 3x4 P2 POWER SOCKET 10
11 LIGHTING L6 3x3 375 1P 16A 20A 1P 1000 3x4 P3 POWER SOCKET 12
13 LIGHTING L7 3x3 390 1P 16A 20A 1P 1000 3x4 P4 POWER SOCKET 14
15 LIGHTING L8 3x3 810 1P 16A 20A 1P 1000 3x4 P5 POWER SOCKET 16
17 LIGHTING L9 3x3 394 1P 16A 20A 1P 1000 3x4 P6 POWER SOCKET 18
19 LIGHTING L10 3x3 83 1P 16A 20A 1P 1000 3x4 P7 POWER SOCKET 20
21 LIGHTING L11 3x3 540 1P 16A 32A 1P 1000 3x4 P8 POWER SOCKET 22
23 LIGHTING L12 3x3 375 1P 16A 32A 1P 2237 3x6 A.C1 A/C UNIT 24
25 LIGHTING L13 3x3 560 1P 16A 32A 1P 2797 3x6 A.C2 A/C UNIT 26
27 LIGHTING L14 3x3 135 1P 16A 32A 1P 3356 3x6 A.C3 A/C UNIT 28
29 LIGHTING L15 3x3 340 1P 16A 32A 1P 2797 3x6 A.C4 A/C UNIT 30
31 SOCKET S1 3x4 140 1P 20A 32A 1P 3356 3x6 A.C5 A/C UNIT 32
33 SOCKET S2 3x4 800 1P 20A 32A 1P 1678 3x6 A.C6 A/C UNIT 34
35 SOCKET S3 3x4 750 1P 20A 32A 1P 1119 3x6 A.C7 A/C UNIT 36
37 SOCKET S4 3x4 600 1P 20A 32A 1P 1500 3x6 W.H1 WATER HEATER 38
39 SOCKET S5 3x4 1500 1P 20A 32A 1P 1500 3x6 W.H2 WATER HEATER 40
41 SOCKET S6 3x4 800 1P 20A 32A 1P 1500 3x6 W.H3 WATER HEATER 42
43 SOCKET S7 3x4 1200 1P 20A 32A 1P 1500 3x6 W.H4 WATER HEATER 44
45 SOCKET S8 3x5 850 1P 20A 32A 1P SPARE 46
47 SPACE _ 1P 20A 1P SPARE 48
49 SPACE 1P 32A 1P SPACE 50
4502 5611 3389 R Y B 13403 11134 10803 SPACE
MAIN C.B 4502 5611 3389
100 A 17905 16745 14192
MCCB TOTAL 48842
NOTES :- 25KA
CT : CONTACTOR WITH TIMER & P.B Ics=100% Icu FULL LOAD AMP/PH DEMAND LOAD KVA/PH MAX. DEMAND AMP
CTT : CONTACTOR WITH TIMER & PHOTO CELL R Y B R Y B 41.85
ELR : EARTH LEAKAGE 30 mA 81.39 76.11 64.51 8.51 9.21 8.77
MAX. FULL LOAD AMP DEMAND AMP/PH
81.39 AMP 38.67 41.85 39.86
CONNECTED LOAD LIGHTING SOCKET P/SOCKET AIR CONDITION F.C.U WATER HEATER OTHERS TOTAL
LOAD IN VA 6862 7890 8000 17340 0 6000 0 46092
DEMAND FACTOR 0.9 0.9 0.9 0.85 0.8 0.8 0.6 0.90 DB-F
ACTUAL LOAD 6175.8 7101 7200 14739 0 4800 0 40015.8 PANEL
