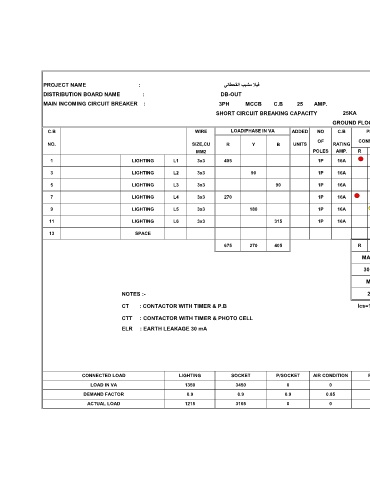

PROJECT NAME : يناطحقلا ببشم لايف WALL MOUNTED PANEL : IP-42
DISTRIBUTION BOARD NAME : DB-OUT INCOMMING FEEDER : CABLE (3*10+10)+10mm
MAIN INCOMING CIRCUIT BREAKER : 3PH MCCB C.B 25 AMP. CU/PVC/PVC
SHORT CIRCUIT BREAKING CAPACITY 25KA COPPER CONDUCTORS
GROUND FLOOR
C.B WIRE LOAD/PHASE IN VA ADDED NO C.B PHASE C.B NO ADDED LOAD/PHASE IN VA WIRE C.B
OF CONNECTION OF LOAD DESCRIPTION
NO. SIZE,CU R Y B UNITS RATING RATING UNITS R Y B SIZE,CU NO.
MM2 POLES AMP. R Y B AMP. POLES MM2
1 LIGHTING L1 3x3 405 1P 16A 20A 1P 300 3x4 S1 SOCKET 2
3 LIGHTING L2 3x3 90 1P 16A 32A 1P 600 3x4 S2 SOCKET 4
5 LIGHTING L3 3x3 90 1P 16A 32A 1P 750 3x4 S3 SOCKET 6
7 LIGHTING L4 3x3 270 1P 16A 20A 1P 300 3x4 S4 SOCKET 8
9 LIGHTING L5 3x3 180 1P 16A 20A 1P 900 3x4 S5 SOCKET 10
11 LIGHTING L6 3x3 315 1P 16A 1P 600 3x4 S6 SOCKET 12
13 SPACE SPACE 14
675 270 405 R Y B 600 1500 1350
MAIN C.B 675 270 405
30 A 1275 1770 1755
MCCB TOTAL 4800
NOTES :- 25KA
CT : CONTACTOR WITH TIMER & P.B Ics=100% Icu FULL LOAD AMP/PH DEMAND LOAD KVA/PH MAX. DEMAND AMP
CTT : CONTACTOR WITH TIMER & PHOTO CELL R Y B R Y B 0.00
ELR : EARTH LEAKAGE 30 mA 5.80 8.05 7.98
MAX. FULL LOAD AMP DEMAND AMP/PH
8.05 AMP
CONNECTED LOAD LIGHTING SOCKET P/SOCKET AIR CONDITION F.C.U WATER HEATER OTHERS TOTAL
LOAD IN VA 1350 3450 0 0 0 0 0 4800
DEMAND FACTOR 0.9 0.9 0.9 0.85 0.8 0.8 0.8 0.80 DB-OUT
ACTUAL LOAD 1215 3105 0 0 0 0 0 4320 PANEL
